Запчасти Case IH MXU125 (1.80.7/04[02]) - (VAR.269/1) CCLS FOR TRANSMISSION 24X24 (EDC) - CONTROL VALVE AND RELEVANT PARTS - 4WD (07) - HYDRAULIC SYSTEM

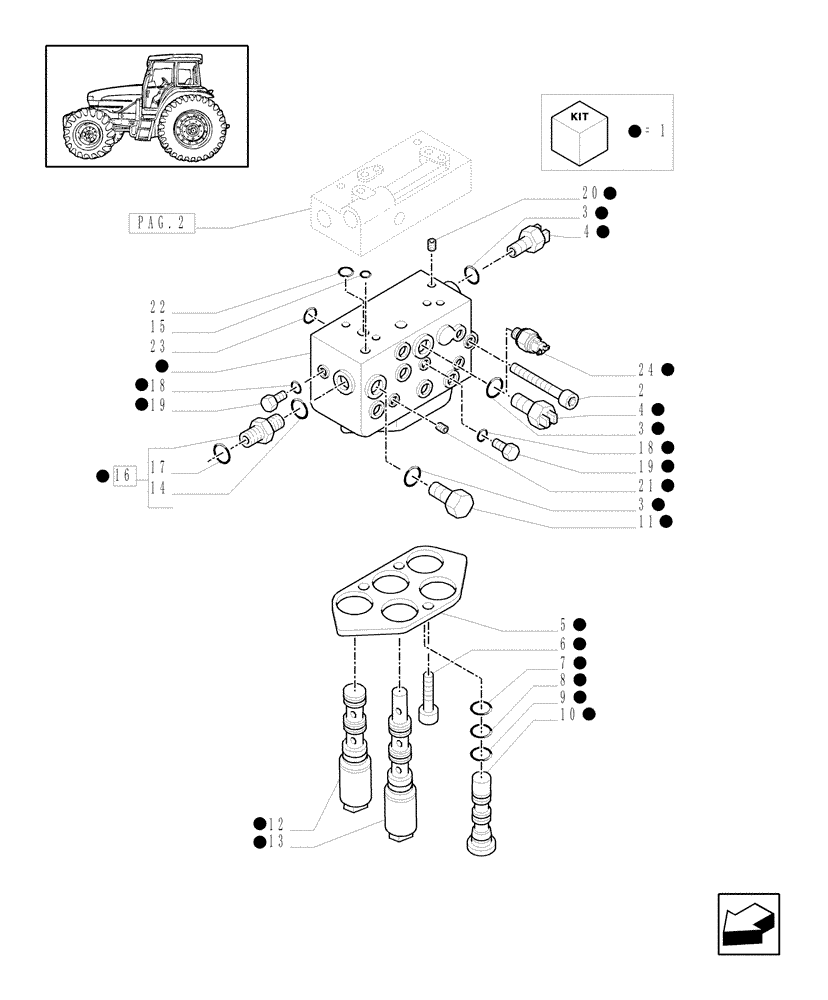

Схема запчастей Case IH MXU125 - (1.80.7/04[02]) - (VAR.269/1) CCLS FOR TRANSMISSION 24X24 (EDC) - CONTROL VALVE AND RELEVANT PARTS - 4WD (07) - HYDRAULIC SYSTEM
2
11
1
23
19
18
13
19
1
1
10
16
1
1
1
14
18
15
7
5
24
1
22
1
1
1
1
1
8
1
1
1
1
1
12
1
4
1
20
pag.2
1
1
9
1
1
1
4
6
1
3
3
21
17
3

Артикул

Название

Примечание

Количество

1

5195591

CONTROL VALVE

1шт.

2

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

M10X1,25X90

3шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X18

3шт.

4

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

Q.ty 2 Before Date 22 April 2005, Q.ty 1 After Date 22 April 2005

1шт.

5

5195317

PLATE

1шт.

6

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

7

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

8

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

9

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

10

5195316

PLUG

1шт.

11

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

M12X1,5

1шт.

12

87723774

SOLENOID VALVE

3шт.

13

5196873

SOLENOID VALVE

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

15

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

16

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16X1,5, 11/16"-16UNF - 2A

1шт.

17

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

18

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

19

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

20

5171508

RESTRICTOR

1шт.

21

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

23

14457081

O-RING,12.37mm ID x 2.62mm

6шт.

24

87304277

PRESSURE SWITCH

, Start Serial: D5158

1шт.

Выбрано товаров: 25
