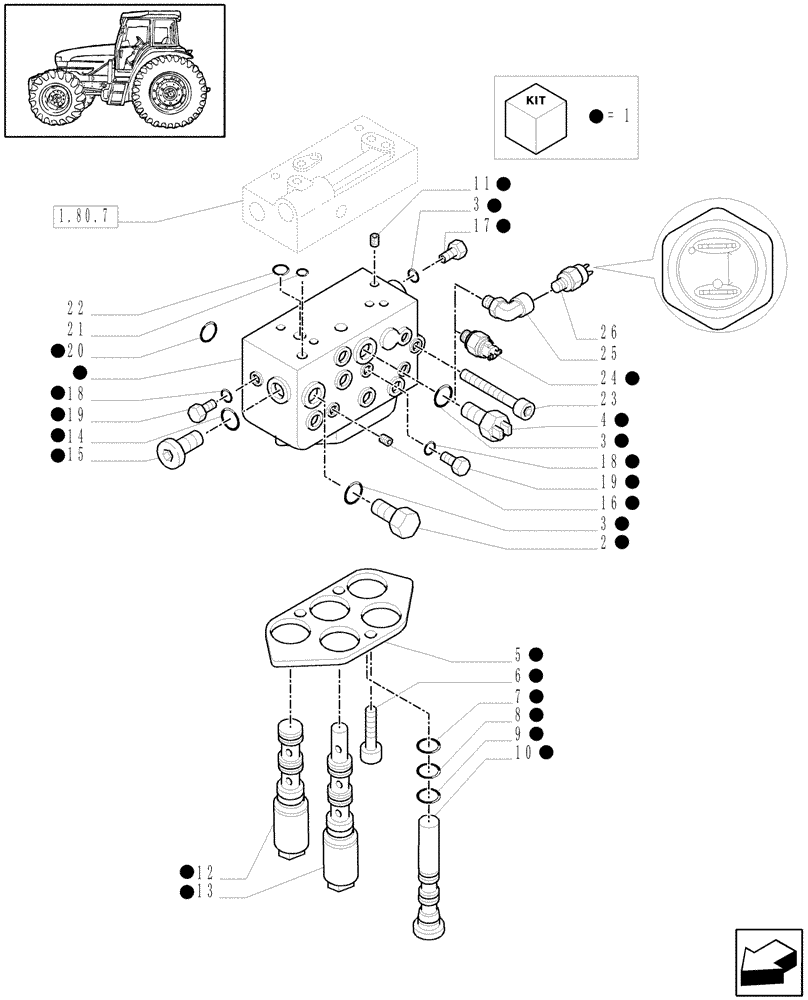

Запчасти Case IH MXU125 (1.80.7/01[01]) - (VAR.100 -112) 2WD CREEPER TRANSMISSION FOR TRANSMISSION 24X24 - CONTROL VALVE AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5195791

CONTROL VALVE

1шт.

2

11903274

PLUG

M12X1,25

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X18

3шт.

4

82031395

SWITCH ASSY

Trans. Oil, Serial Range: -C5158

1шт.

5

5195317

PLATE

1шт.

6

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

7

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

8

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

9

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

10

5195316

PLUG

1шт.

11

5171508

RESTRICTOR

1шт.

12

87723774

SOLENOID VALVE

3шт.

13

5196873

SOLENOID VALVE

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

15

10119340

PLUG,M16 x 1.5 x 15, Brass

1шт.

16

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

17

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

18

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

19

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

20

14457081

O-RING,12.37mm ID x 2.62mm

6шт.

21

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

23

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

M10X1,25X90

3шт.

24

87304277

PRESSURE SWITCH

, Serial Range: D5158-C5404

2шт.

25

87537887

90 ELBOW

, Start Serial: D5404

2шт.

26

87395493

PRESSURE SWITCH

Trans. Oil, Start Serial: D5404

2шт.
