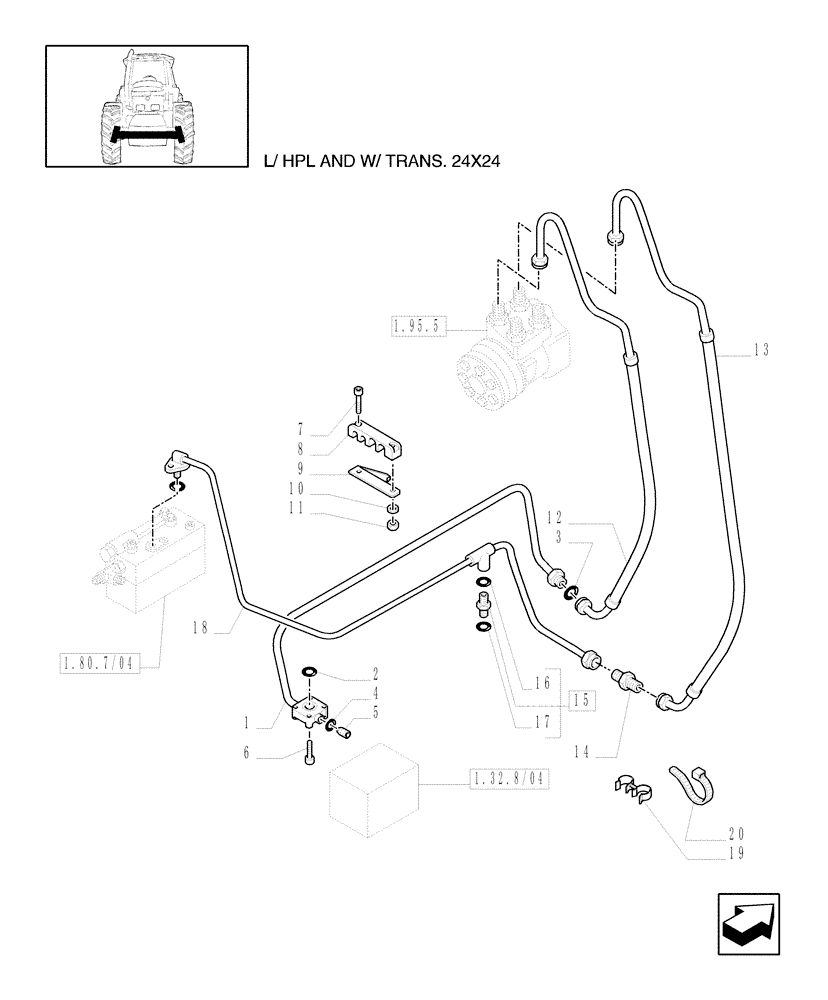

Запчасти Case IH MXU125 (1.42.0/04) - (VAR.831) CCLS WITH 2 MECHANICAL CONTROL VALVE - POWER STEERING DELIVERY AND RETURN PIPES (04) - FRONT AXLE & STEERING

1

47123588

HYD TUBE

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

5161047

PRESSURE SWITCH

3 Bar

1шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

47123528

CLAMP

1шт.

9

47123529

BRACKET

1шт.

10

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

11

16100821

NUT,M8, Cl 10

2шт.

12

82035802

TUBE

Feed

1шт.

13

82035804

TUBE

Return

1шт.

14

82030315

HYD CONNECTOR

1"-14UNF, 13/16"-16UNF

1шт.

15

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

13/16"-16, M18X1,5

1шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

17

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

18

87367834

HYD TUBE,16 mm DIA x 536, 558 mm L

1шт.

19

82035888

CLIP,16mm

1шт.

20

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.
