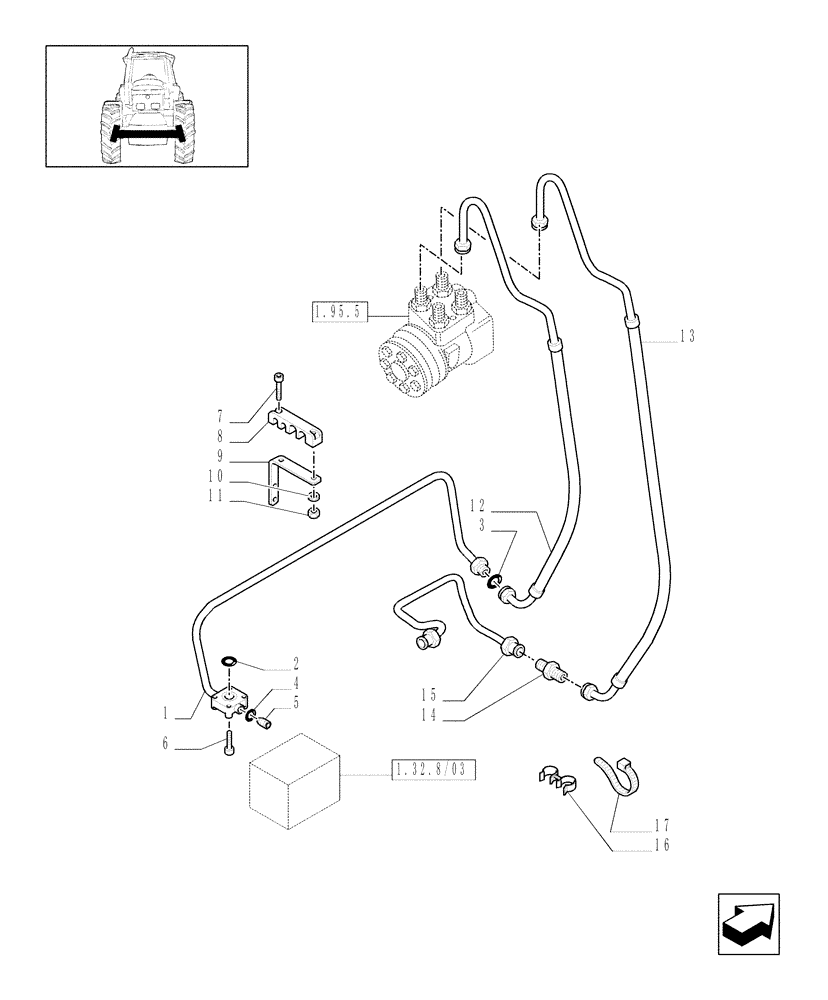

Запчасти Case IH MXU125 (1.42.0/03) - (VAR.350) CCLS FOR TRANSMISSION 16X16 - POWER STEERING PIPES (04) - FRONT AXLE & STEERING

1

47123588

HYD TUBE

INCL.2,3

1шт.

2

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

5161047

PRESSURE SWITCH

3 Bar

1шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

47123528

CLAMP

1шт.

9

47124243

BRACKET

1шт.

10

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

11

16100821

NUT,M8, Cl 10

2шт.

12

82036340

HYD TUBE

Feed

1шт.

12

82036217

HYD TUBE

Feed

1шт.

For Cab With Suspension (VAR.435-436-437/1-607)

1шт.

13

82036341

HYD TUBE

Return

1шт.

13

82036218

TUBE

Return

1шт.

For Cab With Suspension (VAR.435-436-437/1-607)

1шт.

14

82030315

HYD CONNECTOR

1"-14UNF, 13/16"-16UNF

1шт.

15

87367851

RIGID TUBE,16 mm DIA x 209, 136 mm L

1"-14

1шт.

16

82035888

CLIP,16mm

1шт.

17

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.
