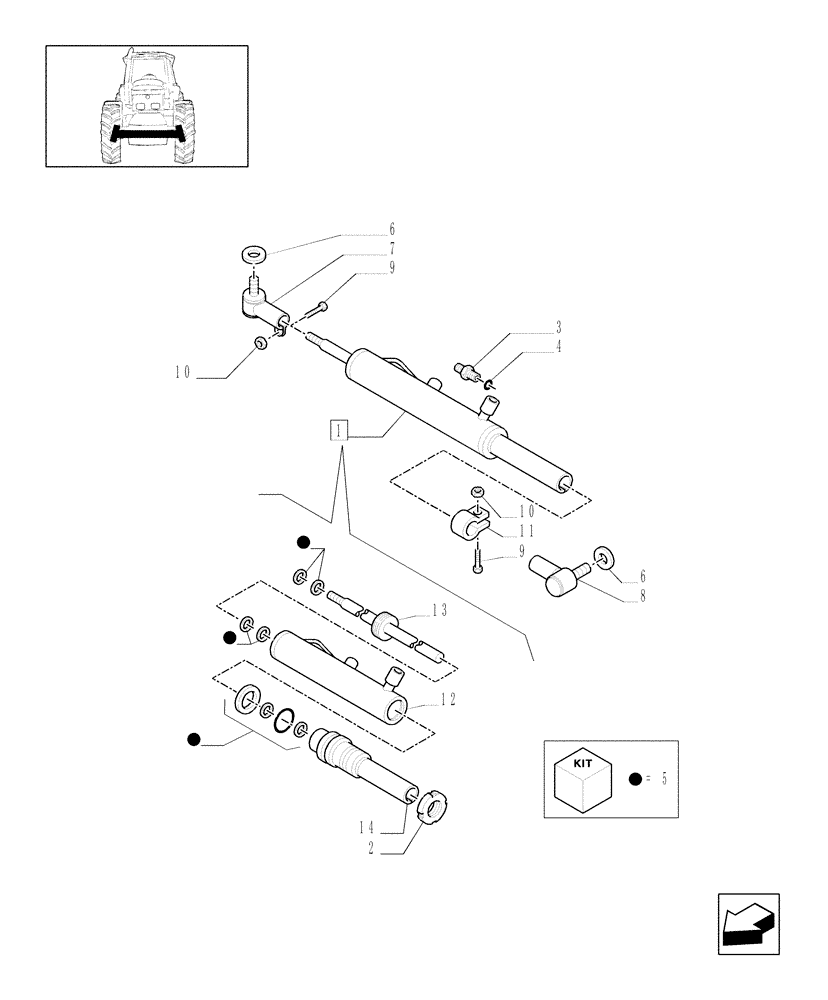

Запчасти Case IH MXU125 (1.41.0/01[03A]) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - ASN 216506 (04) - FRONT AXLE & STEERING

1

82037187

STEERING CYLINDER,Double Acting, 25mm Rod, 236.5mm Stroke

1шт.

1

82037187R

REMAN-HYD CYLINDER

MXU125, MXU135, Both CASE IH TRACTOR, ASN 216506 (7/03-)

1шт.

1

82037187C

CORE-HYD CYLINDER

Return Number

1шт.

2

82037195

LOCK NUT

1шт.

3

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

2шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

2шт.

5

82037194

SEAL KIT

1шт.

6

81863814

COVER

2шт.

7

81863813

TRACK ROD END ASSY

INCL. 6, 9, 10

1шт.

8

81863815

BALL JOINT,1 1/4" - 12 x 3" L

INCL. 6

1шт.

9

82851742

BOLT

1шт.

10

11702911

NUT,M12, Cl 8, ZND

1шт.

11

82037182

CLAMP

1шт.

12

82037189

BARREL

1шт.

13

82037191

BRACKET

1шт.

14

82037190

TUBE,778 mm Length

1шт.
