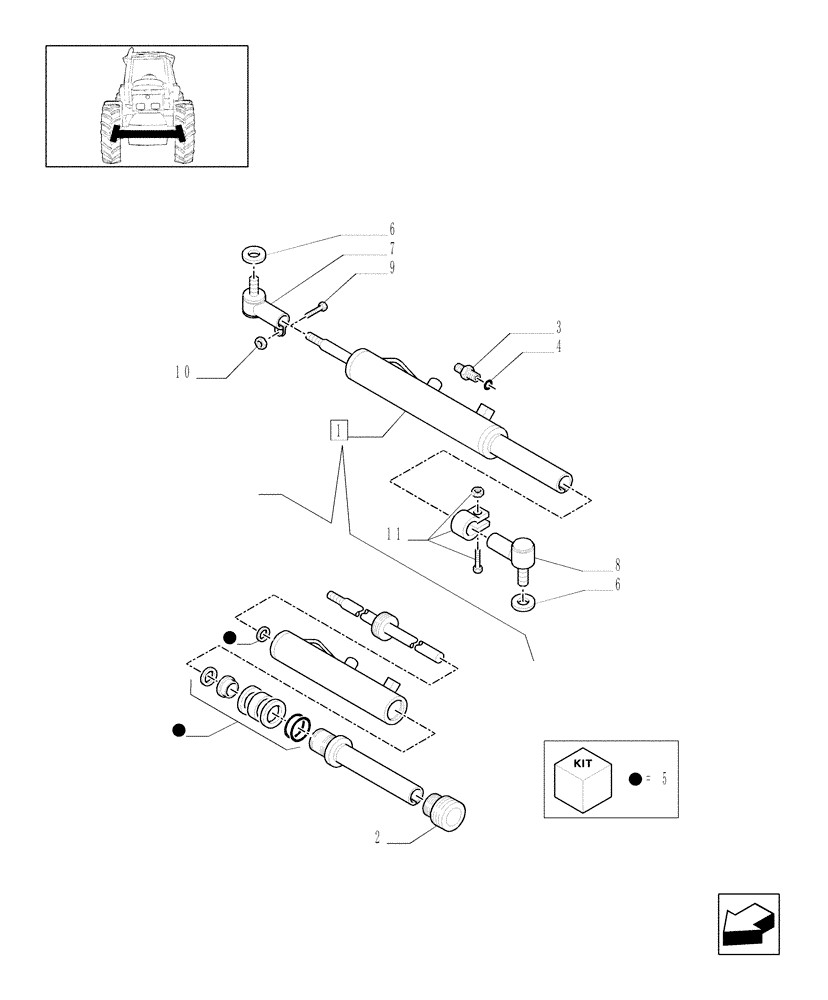

Запчасти Case IH MXU125 (1.41.0/01[03]) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BSN 216506 (04) - FRONT AXLE & STEERING

1

82029412

STEERING CYLINDER

1шт.

2

82031791

LOCK NUT

1шт.

3

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

2шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

2шт.

5

82031092

SEAL KIT

1шт.

6

81863814

COVER

2шт.

7

81863813

TRACK ROD END ASSY

INCL. 6, 9, 10

1шт.

8

81863815

BALL JOINT,1 1/4" - 12 x 3" L

INCL. 6

1шт.

9

80280524

SCREW

Cap, HH, G5, 1/2"-13 x 1-5/8"

1шт.

10

80280431

NUT

G5, 1/2"-13

1шт.

11

82031790

CLAMP

1шт.
