Запчасти Case IH MXU125 (1.98.3/01[01B]) - (VAR.965) LICENSE PLATE LAMP & SUPPORT, MOUNTING ON MUDGUARD (W/CAB) - D6560 (10) - OPERATORS PLATFORM/CAB

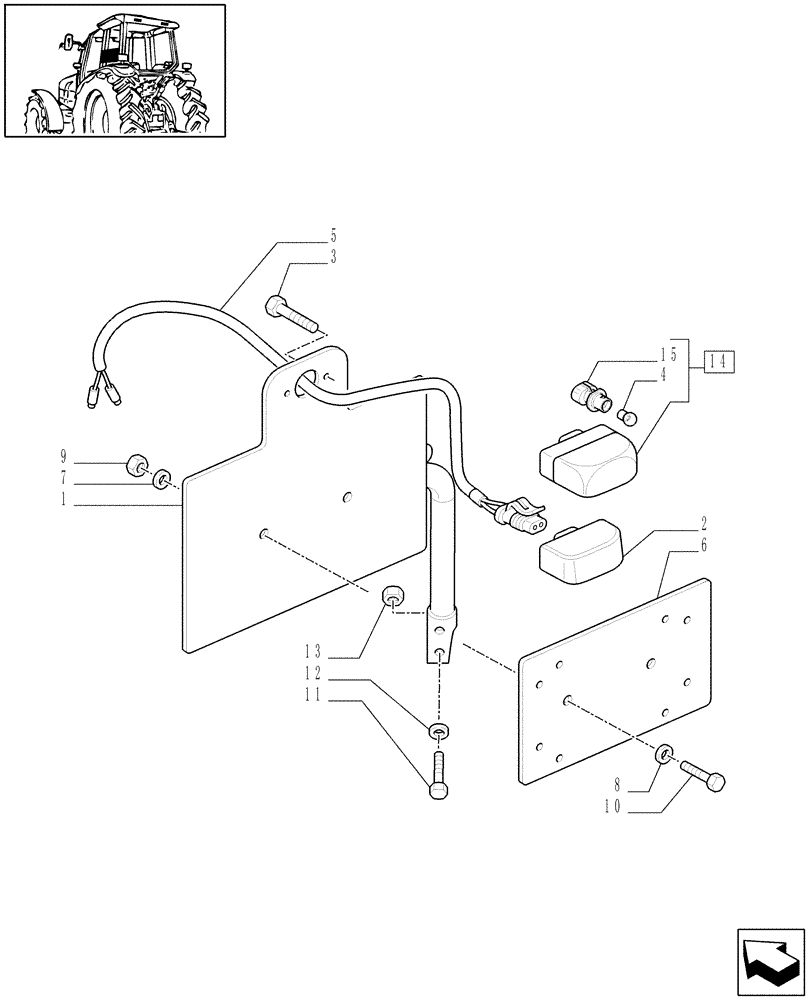

Схема запчастей Case IH MXU125 - (1.98.3/01[01B]) - (VAR.965) LICENSE PLATE LAMP & SUPPORT, MOUNTING ON MUDGUARD (W/CAB) - D6560 (10) - OPERATORS PLATFORM/CAB
5
3
15
12
2
11
4
10
6
8
13
14
7
1
9

Артикул

Название

Примечание

Количество

1

82036417

BRACKET

1шт.

2

87304742

HOLDER

1шт.

3

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

4

14144190

BULB,W5W, 12V, 5W

12V, 5W

1шт.

5

82035389

WIRE HARNESS

LICENSE PLATE

1шт.

6

5170366

PLATE

1шт.

7

10571579

LOCK WASHER,M6

2шт.

8

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

10

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

M6x20

2шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

14

87301999

NUMBER PLATE LAMP

1шт.

Выбрано товаров: 14
