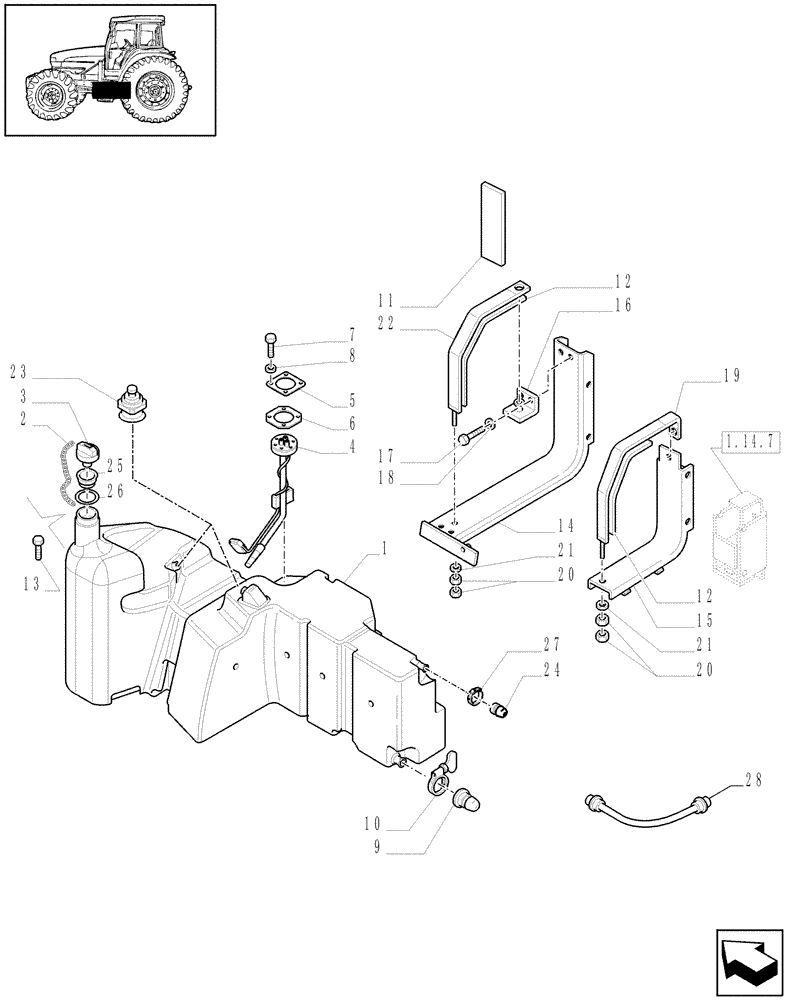

Запчасти Case IH MXU115 (1.14.0/01[01A]) - FUEL TANK AND RELATED PARTS - D5533 - C6240 (02) - ENGINE EQUIPMENT

1

87597064

FUEL TANK

1шт.

2

82012533

LINK CHAIN

1шт.

3

82012210

FILLER CAP

1шт.

4

87606282

FUEL GAUGE

1шт.

5

87341216

PLATE

1шт.

6

87341159

PLATE

1шт.

7

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

9

83998666

CAP

13шт.

10

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

11

82012920

RUBBER PAD,635mm L

1шт.

12

82013475

RUBBER PAD

2шт.

13

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

1шт.

14

82033330

SUPPORT

1шт.

15

82033333

SUPPORT

1шт.

16

82027923

SUPPORT

1шт.

17

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

19

82020723

SECURING STRAP

696 mm long, plus 115 thread

1шт.

20

83911009

NUT,M10, G8

8шт.

21

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

22

82013785

BRACKET

MM.606

1шт.

23

82035326

ADAPTER

Fuel Ventilation

1шт.

24

83952371

CAP,15mm ID X 25mm

2шт.

25

87554848

NECK FILLER

1шт.

26

87554849

O-RING,69mm ID x 4.5mm Width

1шт.

27

82012719

CLAMP,15mm - 24mm, Worm Gear

1шт.

28

87302145

TUBE,335 mm L

Fuel Ventilation

1шт.
