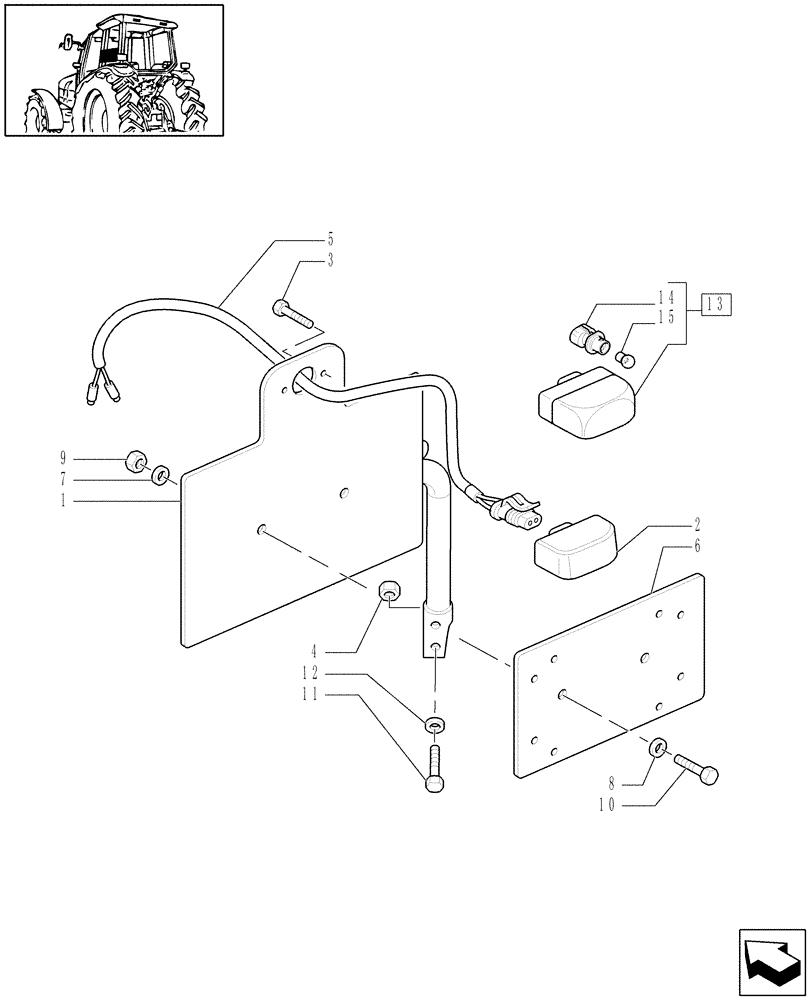

Запчасти Case IH MXU115 (1.98.3[01]) - (VAR.965) LICENSE PLATE LAMP & SUPPORT, MOUNTING ON MUDGUARD (W/CAB) (10) - OPERATORS PLATFORM/CAB

1

82036417

BRACKET

1шт.

2

82023578

NUMBER PLATE LAMP

, Serial Range: -C6560

1шт.

3

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

5

82035389

WIRE HARNESS

LICENSE PLATE

1шт.

6

5170366

PLATE

1шт.

7

12035670

LOCK WASHER

M6

2шт.

8

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

10

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

13

87301999

NUMBER PLATE LAMP

, Start Serial: D6560

1шт.

14

87304742

HOLDER

1шт.

15

14144190

BULB,W5W, 12V, 5W

12V-5W

1шт.
