Запчасти Case IH MXU115 (1.96.2/04) - (VAR.597) 2 AUX. RAMS W/EDC AND 3 REMOTES FOR HD REAR AXLE - CONTROL VALVE CONTROL (10) - OPERATORS PLATFORM/CAB

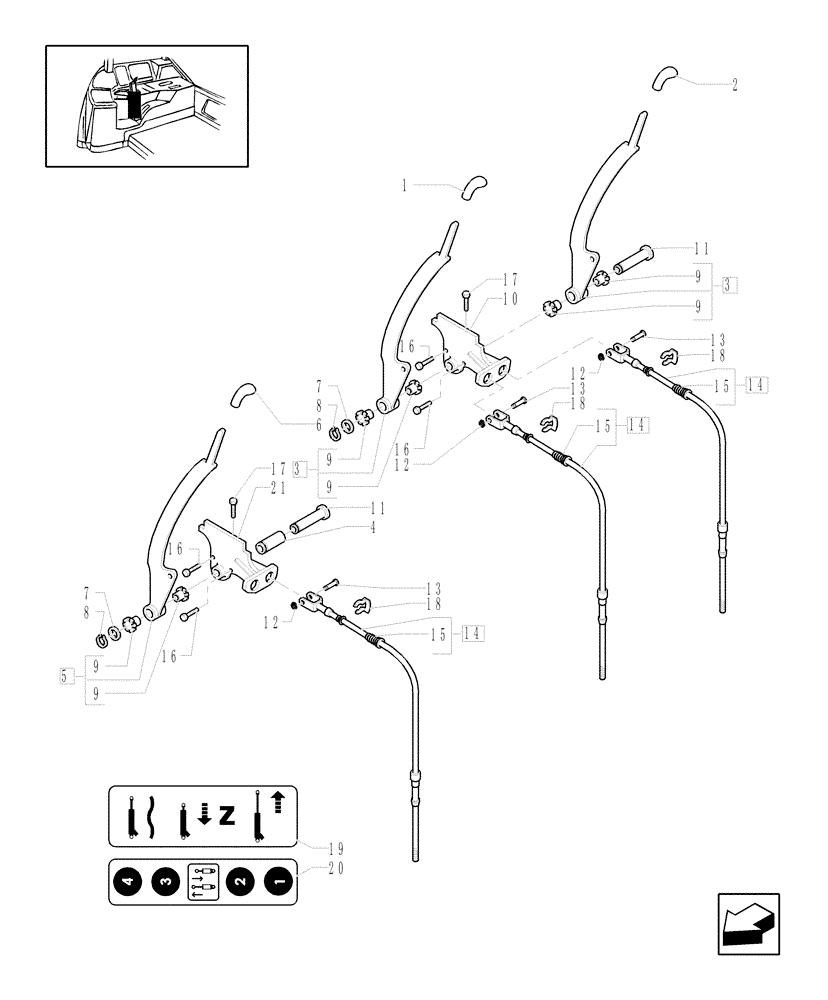

Схема запчастей Case IH MXU115 - (1.96.2/04) - (VAR.597) 2 AUX. RAMS W/EDC AND 3 REMOTES FOR HD REAR AXLE - CONTROL VALVE CONTROL (10) - OPERATORS PLATFORM/CAB
9
8
15
11
12
12
8
1
3
21
2
14
7
7
15
9
6
13
9
16
13
10
14
18
19
14
9
16
15
4
17
3
18
16
12
11
9
9
13
17
16
20
5
18

Артикул

Название

Примечание

Количество

1

82037912

KNOB

3th Control Valve

1шт.

2

82037911

KNOB

2nd Control Valve

1шт.

3

82036832

LEVER

Includes Ref.9

2шт.

4

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

5

82036839

LEVER

Includes Ref.9

1шт.

6

82037910

KNOB

1st Control Valve

1шт.

7

81819651

SPRING WASHER,13mm ID x 19mm OD

2шт.

8

11088171

SNAP RING,M11

2шт.

9

82035633

BUSHING

6шт.

10

87308465

HOUSING

2шт.

11

82035628

HEADED PIN,11.98mm OD x 95mm L

2шт.

12

11087771

LOCKING RING

3шт.

13

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

3шт.

14

82037073

CABLE,1826mm L

Remote Control, Serial Range: -C5295

3шт.

14

87308463

CABLE,1828mm L

Remote Control, Serial Range: D5295-C5411

3шт.

14

87525209

CABLE,1828mm L

Remote Control, Serial Range: D5441-C5875

3шт.

14

87678198

CABLE,1828mm L

Remote Control, Start Serial: D5875

3шт.

15

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

3шт.

16

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

17

13806421

SET SCREW,Hex Soc, M6 x 8mm

2шт.

18

82007837

LOCKING RING

3шт.

19

87556505

DECAL

1шт.

20

82034262

DECAL

1шт.

Выбрано товаров: 23
