(1.96.2/02[02]) - (VAR.704) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - AUXILIARY CABLES

Запчасти Case IH MXU115 (1.96.2/02[02]) - (VAR.704) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - AUXILIARY CABLES (10) - OPERATORS PLATFORM/CAB

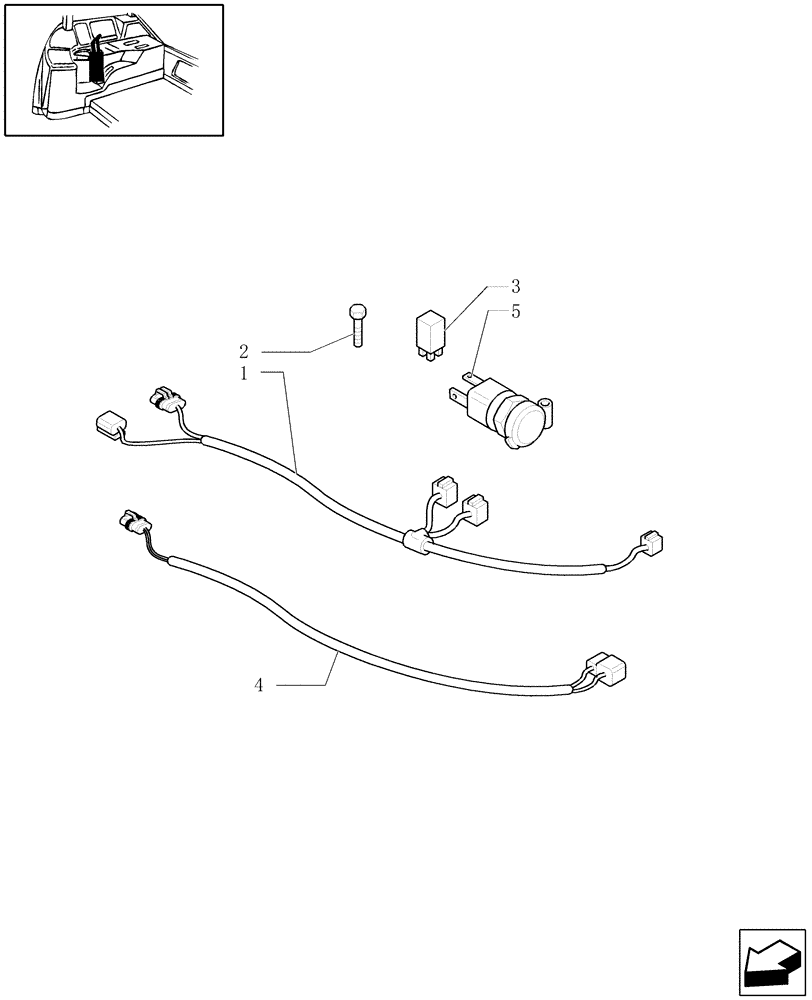

Схема запчастей Case IH MXU115 - (1.96.2/02[02]) - (VAR.704) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER - AUXILIARY CABLES (10) - OPERATORS PLATFORM/CAB
3
4
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82034348

WIRE HARNESS

EUROPEAN LOADER

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

3

82017871

RELAY,12V, 20A

OMRON

2шт.

4

82034346

WIRE HARNESS

EUROPEAN LOADER READY

1шт.

5

82039143

POWER SOCKET

1шт.

Выбрано товаров: 5
