Запчасти Case IH MXU115 (1.96.0[01]) - GEARBOX CONTROL L/CAB (10) - OPERATORS PLATFORM/CAB

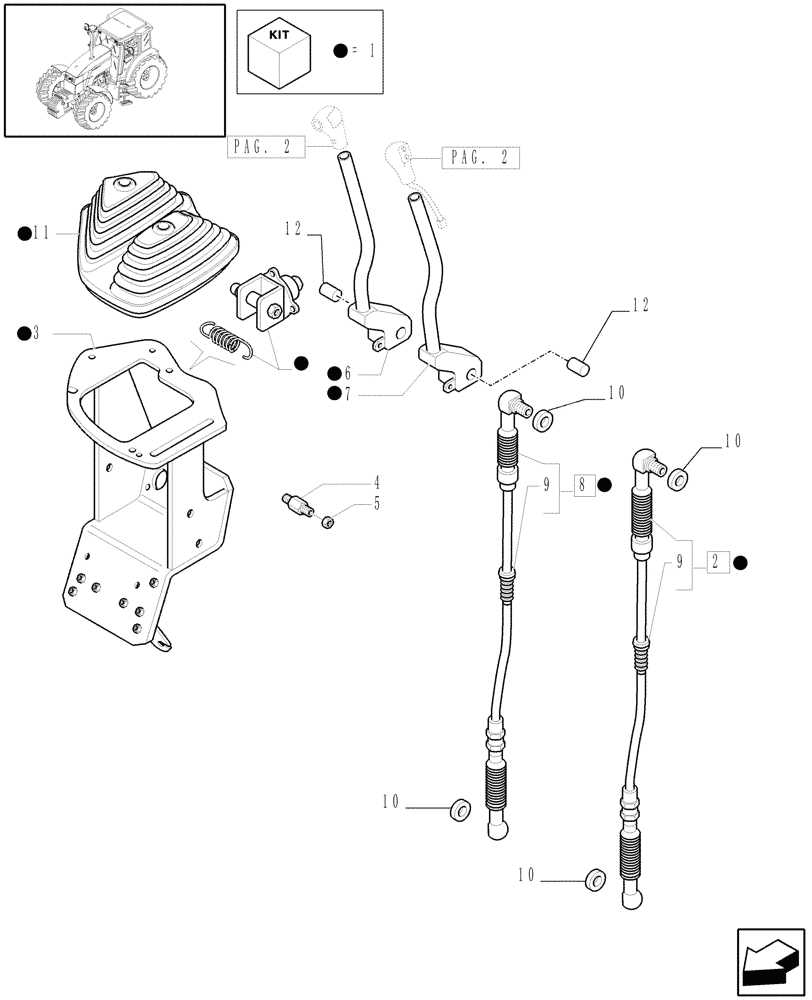

Схема запчастей Case IH MXU115 - (1.96.0[01]) - GEARBOX CONTROL L/CAB (10) - OPERATORS PLATFORM/CAB
11
1
1
1
1
pag. 2
9
10
10
9
1
1
7
5
12
10
4
8
10
2
6
1
3
12
pag. 2

Артикул

Название

Примечание

Количество

1

82037011

CONTROL

ASSY

1шт.

2

82036116

CABLE,2220mm L

Range Control, Black, 2220MM, Includes Ref.9

1шт.

2

82036118

CABLE,2420mm L

Main Trans., Red, 2420MM, Includes Ref.9

1шт.

3

82037012

SUPPORT

1шт.

4

82025694

SPACER,M8 x 1.25 x 67mm

3шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

82036290

LEVER

Range

1шт.

7

82036112

LEVER

Main

1шт.

8

82036115

CABLE,2380mm L

Range Control, Black, 2380MM, Includes Ref.9

1шт.

8

82036117

CABLE,2380mm L

Main Trans., Red, 2380MM, Includes Ref.9

1шт.

9

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

4шт.

10

83963081

LOCK WASHER,Serr, 8.20mm ID x 14mm OD

2шт.

10

10615779

LOCK WASHER,Ext Tooth, M10

2шт.

11

82037326

BOOT

1шт.

12

87751838

BUSHING

2шт.

Выбрано товаров: 15
