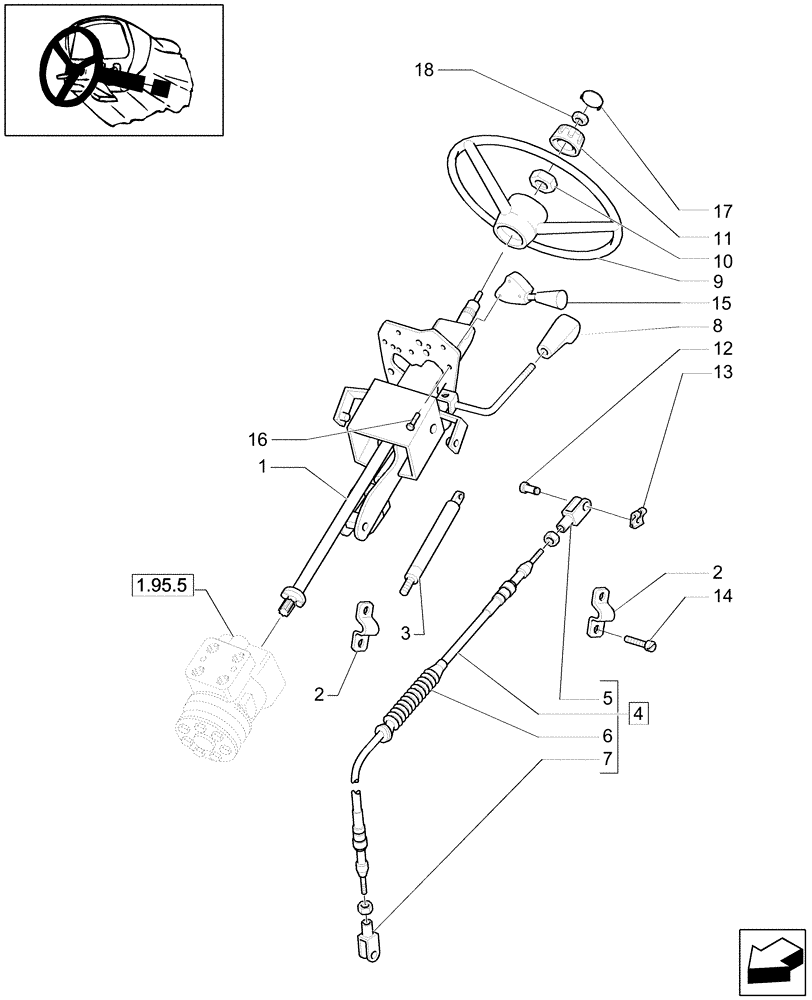

Запчасти Case IH MXU115 (1.95.5/01[01]) - (VAR.110-120) TRANSMISSION 12X12 - STEERING WHEEL AND STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

87327104

STEERING COLUMN

1шт.

1

87302019

STEERING COLUMN

Telescopic

1шт.

2

82026579

CLAMP,44.4mm L x 16mm W

2шт.

3

82036016

GAS STRUT

1шт.

4

82033285

CABLE,1200mm L

Trans. Control, Includes Ref.5, 6, 7

1шт.

5

10007871

YOKE,8mm ID Pin Hole, M8 x 42mm L

1шт.

6

82033193

BELLOWS

1шт.

7

10248271

YOKE,M8

1шт.

8

82006428

KNOB

1шт.

9

89821708

STEERING WHEEL

1шт.

10

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

11

87302160

KNOB

1шт.

12

82026076

PIN,8mm OD x 21.85mm L

1шт.

13

82850690

CLIP,M5

1шт.

14

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

15

87302770

SWITCH ASSY

Flasher/Headlights

1шт.

16

15921801

SELF-TAP SCREW,Hex Wshr Hd, M3.50 x 1.27 x 13mm

6x13

3шт.

17

87302798

CAP,54mm OD, Black

1шт.

18

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.
