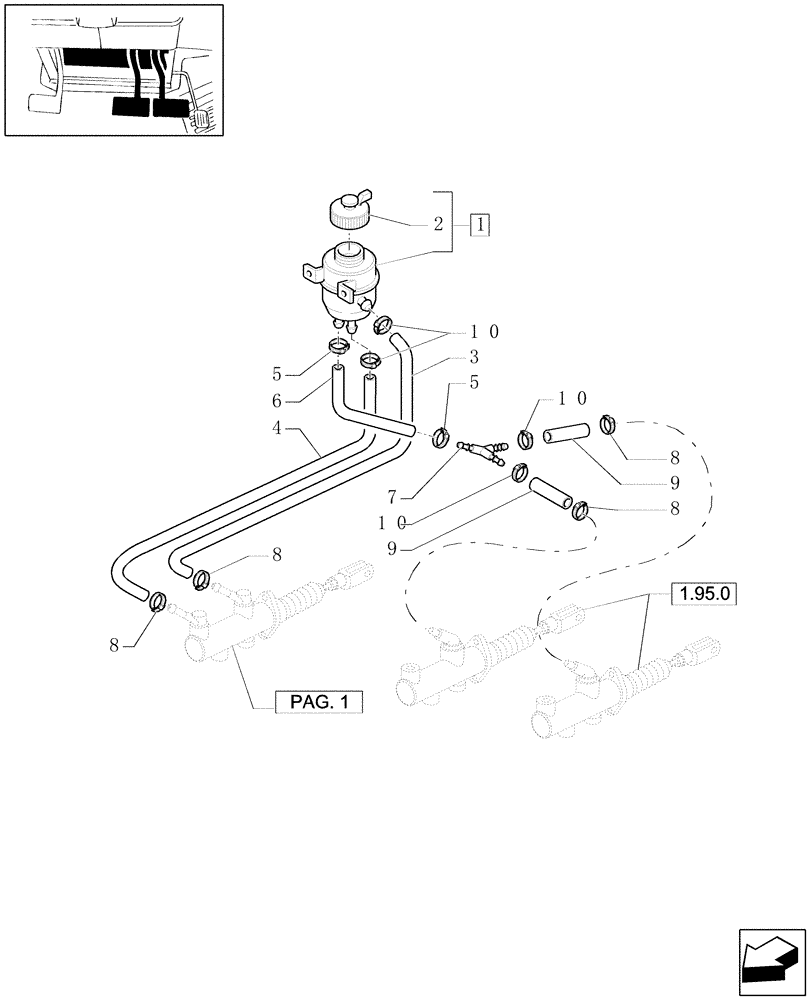

Запчасти Case IH MXU115 (1.95.2/01[02]) - (VAR.110-120) TRANSMISSION 12X12 - HYDRAULIC CLUTCH CONTROLS (10) - OPERATORS PLATFORM/CAB

1

82036189

TANK

Includes Ref.2

1шт.

2

82031428

PLUG

1шт.

3

82032872

HOSE

, Serial Range: -C5585

1шт.

3

87536570

HOSE,7.60 mm ID x 275.00 mm, SAE 30R2

, Start Serial: D5585

1шт.

4

82032873

HOSE

, Serial Range: -C5585

1шт.

4

87536882

HOSE,7.6mm ID x 400mm L, SAE 30R6

, Start Serial: D5585

1шт.

5

81864605

HOSE CLAMP,11.5mm - 14.75mm

2шт.

6

82032870

HOSE

, Serial Range: -C5202

1шт.

6

87338115

HYDRAULIC HOSE,7.60mm ID x 185mm L

, Start Serial: D5202

1шт.

7

87397960

TEE,3 Hoses

1шт.

8

82011382

HOSE CLAMP,15mm - 17mm

4шт.

9

82011329

FLEXIBLE HOSE,8mm ID x 80mm L, SAE 30R7

2шт.

10

82039341

CLAMP,12mm - 22mm

D=11-17

4шт.
