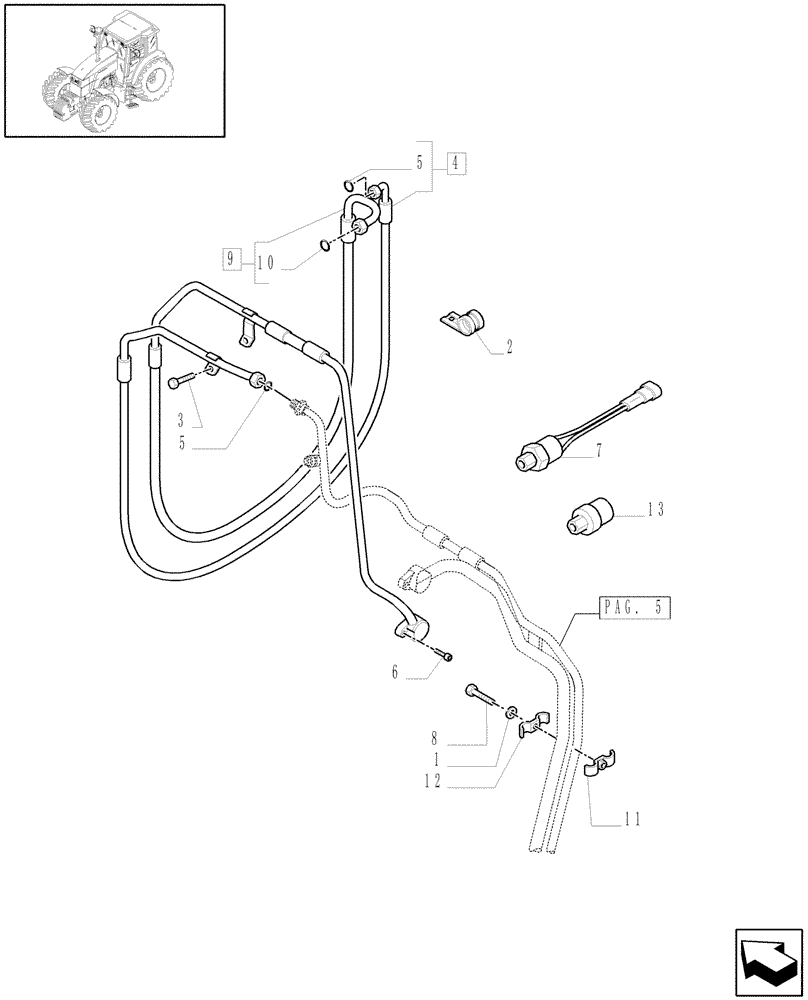

Запчасти Case IH MXU115 (1.94.3/01[06]) - (VAR.053-056-545) AIR CONDITIONING SYSTEM PIPES - D5332 (10) - OPERATORS PLATFORM/CAB

1

14497801

WASHER

1шт.

2

87331631

CLAMP

1шт.

3

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

4

82027322

FLEXIBLE HOSE

, Serial Range: Condenser-Drier

1шт.

5

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk

2шт.

6

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

7

87305163

SWITCH, A/C HIGH PRE

HIGH PRESSURE, Serial Range: -C5854

1шт.

8

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

1шт.

9

82033454

A/C HOSE

Compressor to Condenser, Serial Range: -C5124

1шт.

9

87302929

PIPE

, Serial Range: D5124-C5697

1шт.

9

87628668

PIPE

, Serial Range: D5697-C5942

1шт.

9

87699639

A/C HOSE

, Start Serial: D5942

1шт.

Use Switch PN 87000227 (M10 x 1,25) / Update Connector PN 292548A1 With 2 MCS Style Terminals PN 293653A1 if Needed

1шт.

10

89827058

O-RING

.426" ID x .070" Thk

1шт.

11

82033450

CLAMP

1шт.

12

82033451

CLAMP

1шт.

13

87699591

SWITCH ASSY

, Serial Range: D5854-C5942

1шт.

13

87000227

SWITCH, A/C HIGH PRE

, Start Serial: D5942

1шт.
