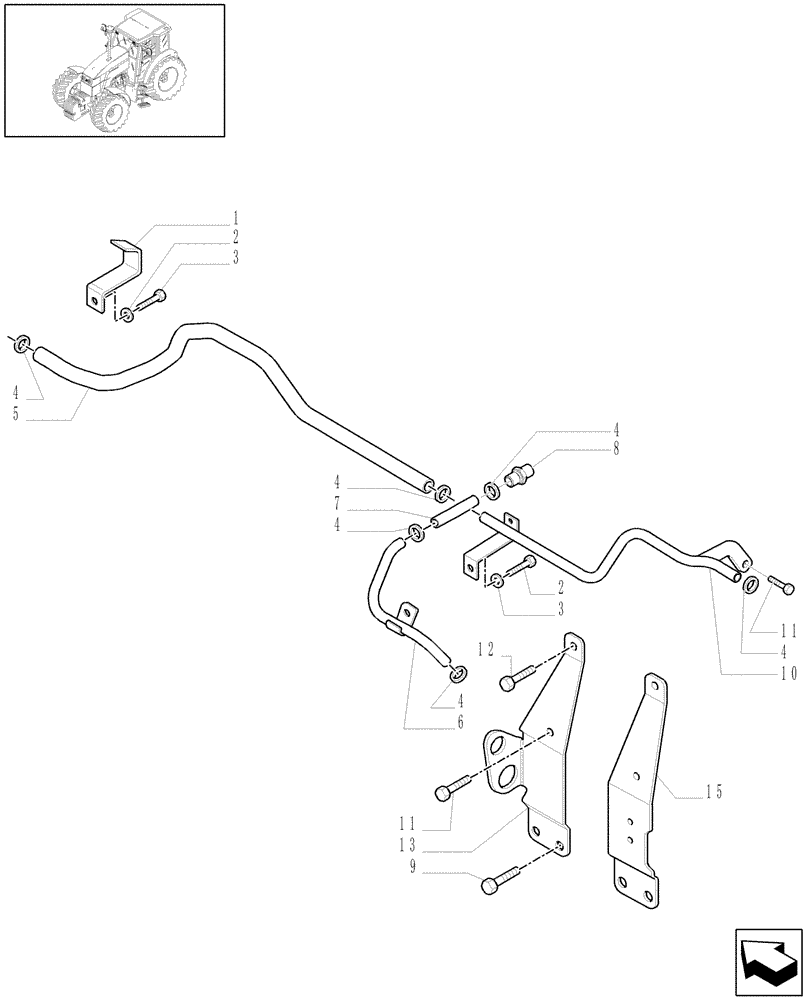

Запчасти Case IH MXU115 (1.94.3/01[02]) - (VAR.053-056-545) AIR CONDITIONING SYSTEM PIPES (10) - OPERATORS PLATFORM/CAB

1

82024370

BRACKET

1шт.

2

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

3

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

4

82019905

HOSE CLAMP,22 - 26mm X 12mm

6шт.

5

82029250

RADIATOR HOSE,15.25 mm ID x 725.00 mm

1шт.

6

82028294

TUBE

1шт.

7

87302739

FLEXIBLE HOSE,15.25mm ID x 117mm L

1шт.

8

87302738

ADAPTER

1шт.

9

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

2шт.

10

87305406

TUBE

1шт.

11

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

2шт.

12

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

13

82035726

BRACKET

, Serial Range: -C5332

1шт.

14

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

M14X2X25

2шт.

15

87395977

BRACKET

, Start Serial: D5332

1шт.
