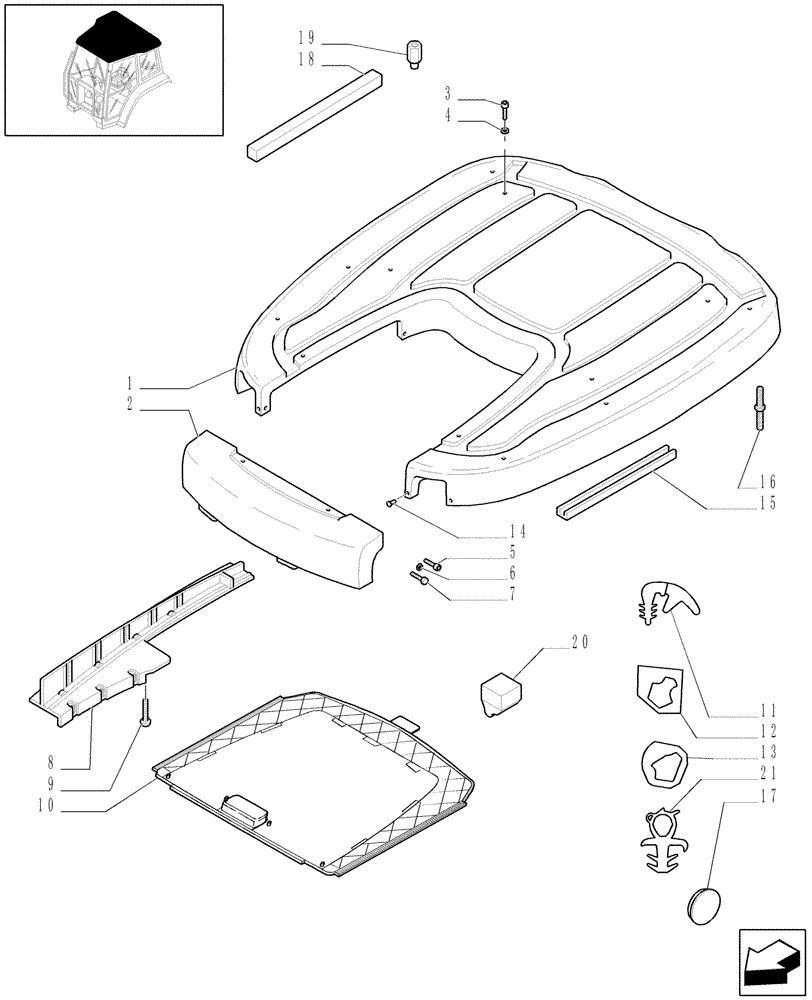

Запчасти Case IH MXU115 (1.94.0/02[01A]) - (VAR.056) ROOF WITH HIGH PROFILE - D5460 (10) - OPERATORS PLATFORM/CAB

1

87585574

ROOF

1шт.

2

82037425

COVER

1шт.

3

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

12шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

SEAL WASHER

12шт.

5

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

5шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

7

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

8

82033597

GUIDE

RH

1шт.

8

82033598

GUIDE

LH

1шт.

9

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

10

87521616

SUNSHADE

1шт.

11

82034370

SEAL

1шт.

3 meters long. Cut to length.

1шт.

12

82038033

GASKET,10mm Thk

RH

1шт.

12

82038034

INSULATION

LH

1шт.

13

82025910

GASKET,10 Thk, Black

LH

1шт.

13

82023417

GASKET,10mm Thk, Black

RH

1шт.

14

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

8шт.

15

82028318

SEAL

1шт.

Q.ty 1= 4 meters

1шт.

16

82034115

STUD

2шт.

17

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

18

82035600

GASKET

3шт.

19

82034114

SPACER,M6 x 25mm L

12шт.

20

82036366

SEAL,21mm W x 5000mm L

1шт.

21

82032314

SEAL,for High Visibility Window

1шт.
