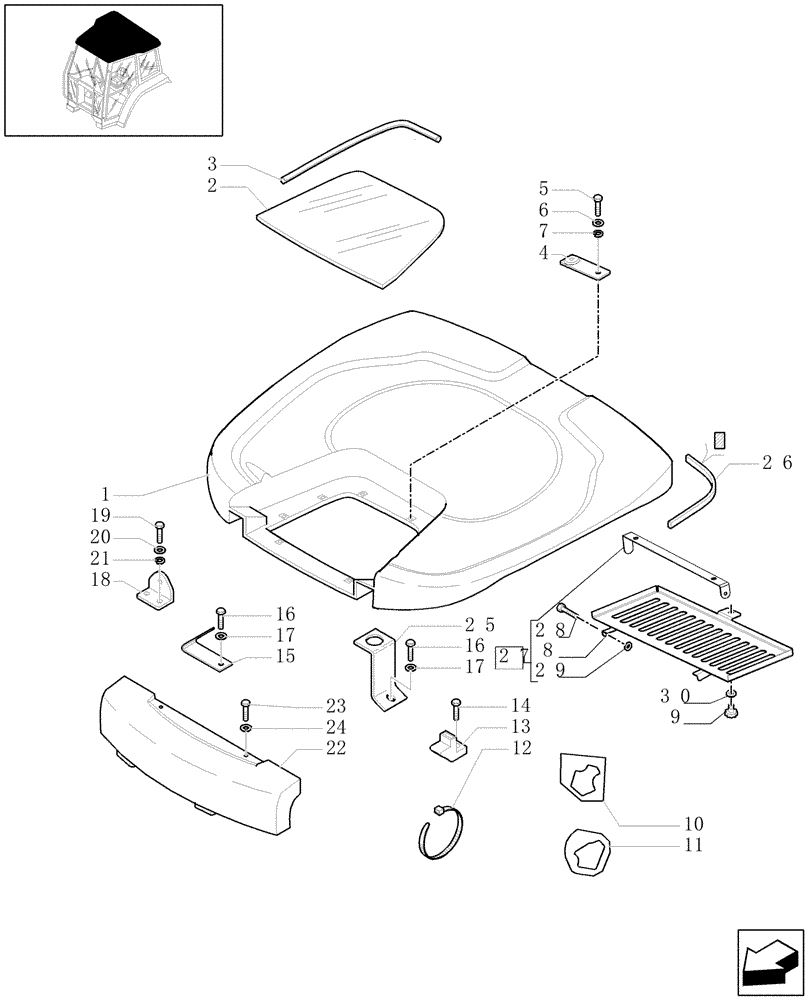

Запчасти Case IH MXU115 (1.94.0/01[01]) - (VAR.007) ROOF WITH LOW PROFILE (NA) - C5460 (10) - OPERATORS PLATFORM/CAB

1

87327778

ROOF

(VAR.007)

1шт.

2

87326644

GLASS

1шт.

3

87326645

SEAL

, Serial Range: -C5263

1шт.

3

87367799

SEAL,1910mm L

, Start Serial: D5263

1шт.

4

87326802

RETAINER

4шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

8шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

8шт.

8

87326775

FILTER COVER

2шт.

9

87325939

SCREW

2шт.

10

82038034

INSULATION

LH

1шт.

10

82038033

GASKET,10mm Thk

RH

1шт.

11

82025910

GASKET,10 Thk, Black

LH

1шт.

11

82023417

GASKET,10mm Thk, Black

RH

1шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

13

81864285

CLIP,M6, Black

20шт.

14

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

, Serial Range: -C5263

30шт.

14

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

, Start Serial: D5263

20шт.

15

87327068

BRACKET

, Serial Range: -C5263

1шт.

16

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

1шт.

17

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

18

87327093

BRACKET

1шт.

19

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

20

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

21

80322355

WASHER

4

2шт.

22

87323767

COVER

1шт.

23

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

24

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

25

87367810

BRACKET

, Start Serial: D5263

1шт.

26

82036366

SEAL,21mm W x 5000mm L

, Start Serial: D5263

1шт.

27

87341180

FILTER COVER

LH, ASSY

1шт.

27

87341182

FILTER COVER

RH, ASSY

1шт.

28

10033111

CLEVIS PIN,M4 x 12

4шт.

29

14227876

CLIP,M4, Push

4шт.

30

87359165

RETAINER CUP,M6

2шт.
