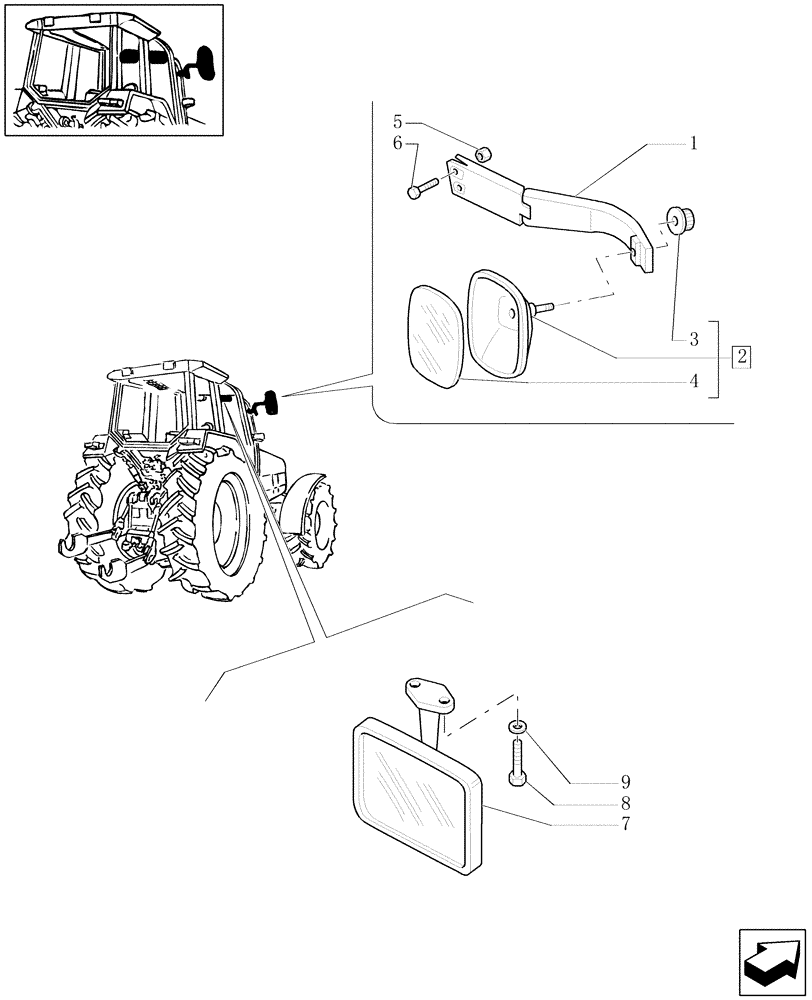

Запчасти Case IH MXU115 (1.93.6) - CAB - REAR-VIEW MIRRORS (10) - OPERATORS PLATFORM/CAB

1

82032643

MIRROR ARM

RH

1шт.

1

82032644

MIRROR ARM

LH

1шт.

2

82014840

REAR VIEW MIRROR,160mm x 263mm

Includes Ref.3, 4, BRITAX # 02*1113, Serial Range: -C5329

2шт.

2

87346558

REAR VIEW MIRROR

ASSY, Start Serial: D5329

1шт.

3

82016257

KNOB

, Serial Range: -C5329

1шт.

4

82015244

REPLACEMENT MIRROR,152.199mm x 253mm

253X152, Serial Range: -C5329

1шт.

" not telescopic "

1шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

6

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

7

82036480

MIRROR

1шт.

8

82880826

SCREW,Hex, M6 x 1 x 25mm, Cl 8.8

M6X25

2шт.

9

14496404

WASHER,M6 x 12 x 2 Thk

2шт.
