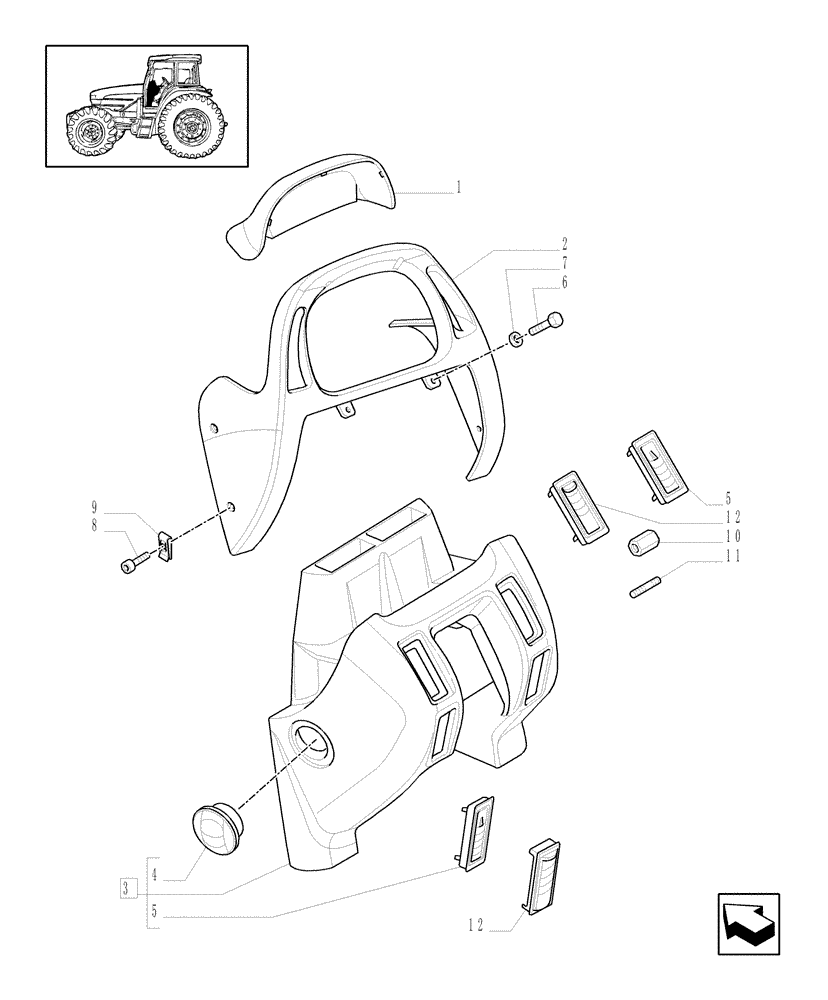

Запчасти Case IH MXU115 (1.93.5[02]) - PANEL INSTRUMENTS (W/ CAB) (10) - OPERATORS PLATFORM/CAB

1

47056225

PANEL

1шт.

2

47056227

PANEL

1шт.

3

47056116

DASHBOARD

Includes Ref.4, 5, Serial Range: -C5924

1шт.

3

87735383

CONSOLE

Includes Ref. 4, 5, Start Serial: D5924

1шт.

4

82027909

DIFFUSER

2шт.

5

44995063

DIFFUSER

Wheat, Serial Range: -C5434

6шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

4шт.

9

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

4шт.

10

47056231

SPACER,19mm x 26.5mm w/M6 Threads

2шт.

10

47056232

SPACER,19mm x 42mm w/M6 Threads

2шт.

11

11500321

BOLT,M6 x 18, 8.8, ZND

M6x18

4шт.

12

87568777

VENT

Wheat, Start Serial: D5434

4шт.
