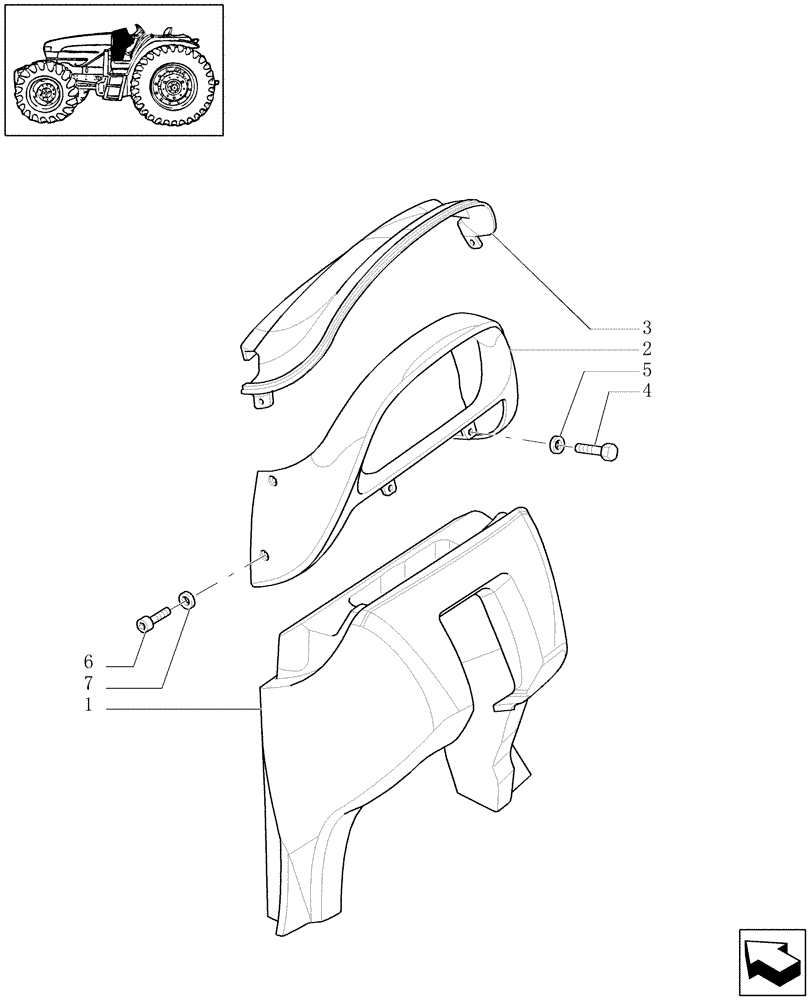

Запчасти Case IH MXU115 (1.93.5[01]) - PANEL INSTRUMENTS (L/CAB) (10) - OPERATORS PLATFORM/CAB

1

82033829

PANEL

1шт.

2

82027522

PANEL

, Serial Range: -C5684

1шт.

2

87376893

PANEL

, Start Serial: D5684

1шт.

3

82032299

PANEL

, Serial Range: -C5684

1шт.

3

87376896

PANEL

, Start Serial: D5684

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

4шт.

7

14496404

WASHER,M6 x 12 x 2 Thk

4шт.
