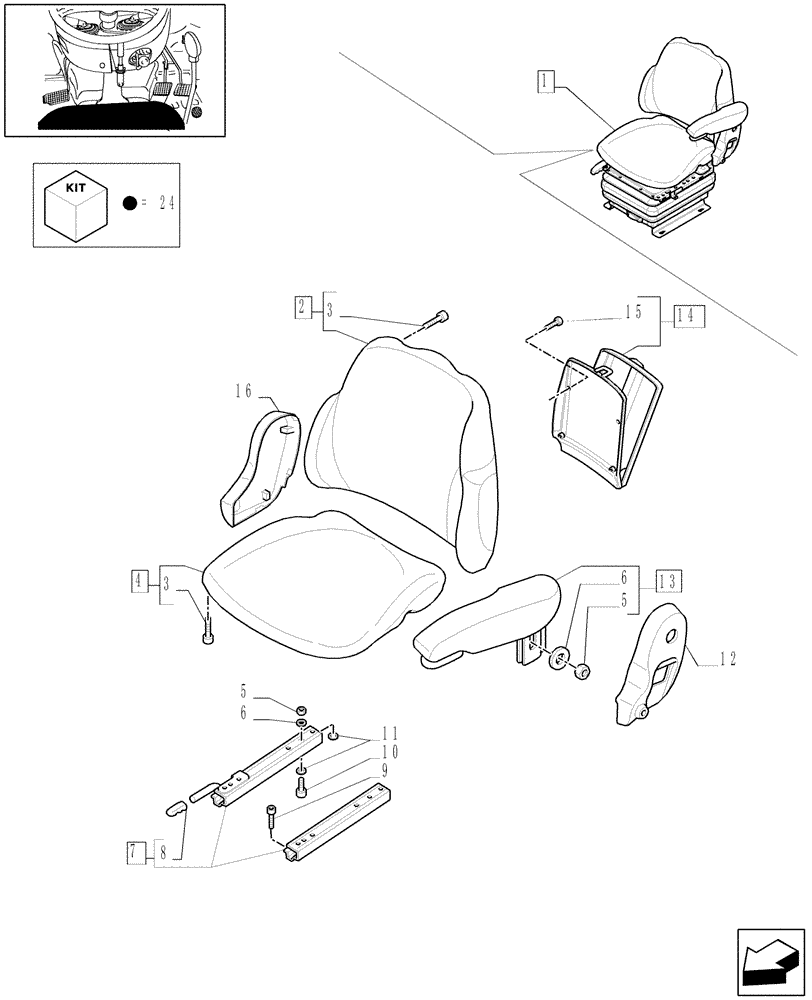

Запчасти Case IH MXU115 (1.93.3/ D[01]) - (VAR.685) "GRAMMER" SEAT L/BELTS AND L/SWITCH - BREAKDOWN - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87309479

DRIVER SEAT

ASSY

1шт.

2

82034992

BACKREST COVER

1шт.

3

82034997

SCREW,M5 x 25mm

5x25

8шт.

4

87331938

SEAT CUSHION

1шт.

5

82034880

NUT,M8

M8

5шт.

6

82034884

WASHER

6шт.

7

87331929

SET OF PARTS

1шт.

8

82034928

HANDLE

1шт.

9

82034892

SCREW,M8 x 1.25 x 1.25mm, Cl 8

M8x12

4шт.

10

82034893

SCREW,M8 x 1.25 x 1.25mm

M8x20

4шт.

11

82034881

WASHER,8.4mm ID

6шт.

12

87331931

COVER

1шт.

13

82034988

ARMREST

1шт.

14

82034977

PLASTIC CASE

1шт.

15

82034863

SCREW,M4 x 8mm

3шт.

16

82023115

COVER

RH, W/Armrest

1шт.
