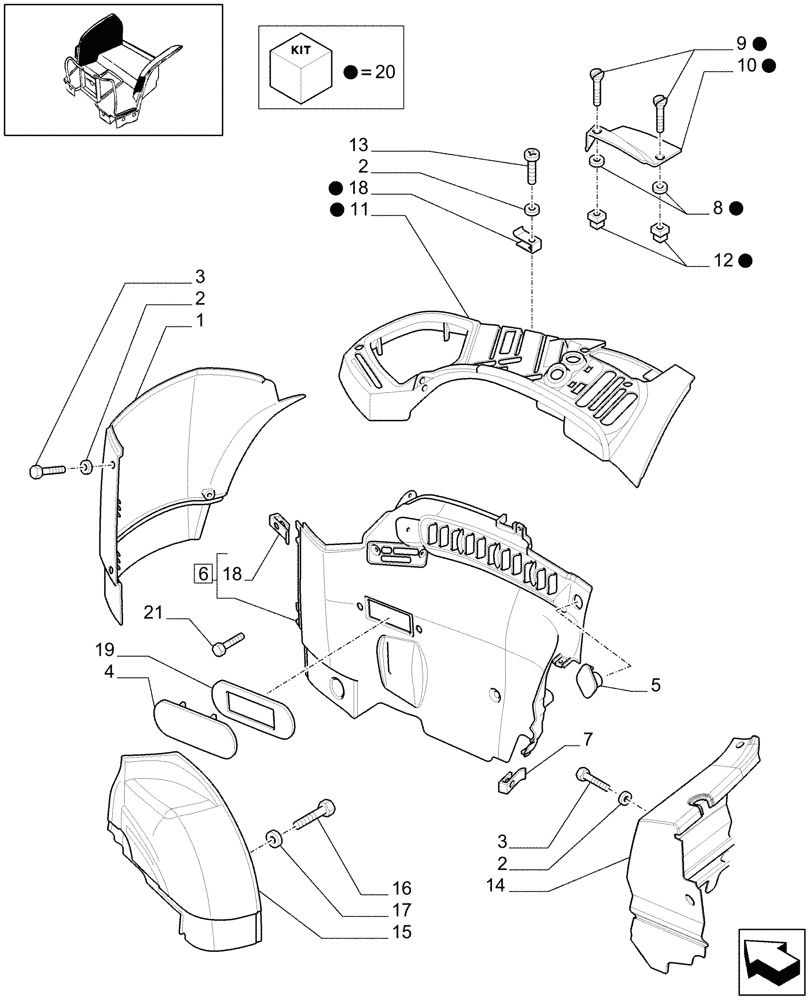

Запчасти Case IH MXU115 (1.93.0[01A]) - CONTROLS COVER (L/CAB) - D5684 - C5844 (10) - OPERATORS PLATFORM/CAB

1

82027528

PANEL

RH, Black

1шт.

2

14496404

WASHER,M6 x 12 x 2 Thk

13шт.

3

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

12шт.

4

82026130

COVER

1шт.

5

82030473

COVER

1шт.

6

87633776

CONSOLE

Black, Includes Ref. 7, 18

1шт.

7

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

8

81875581

RETAINER,6mm ID x 12.5mm OD x 0.5mm Thk

2шт.

9

82024754

STUD,Phillips Drive, Flat HD, M6 x 18mm

Slotted, M6 x 18

2шт.

10

87632201

COVER

1шт.

11

87357796

CONSOLE

1шт.

12

83994515

SPRING CLIP

2шт.

13

15904501

SELF-TAP SCREW,Cross Pan Hd, M5.5 x 16mm

1шт.

14

82029104

PANEL

1шт.

15

87301764

PANEL

LH

1шт.

16

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

5шт.

17

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

5шт.

18

14371271

SPRING NUT,M5, U, 23.7mm long

4шт.

19

87641801

SPACER

1шт.

20

87376873

CONSOLE

ASSY

1шт.

21

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.
