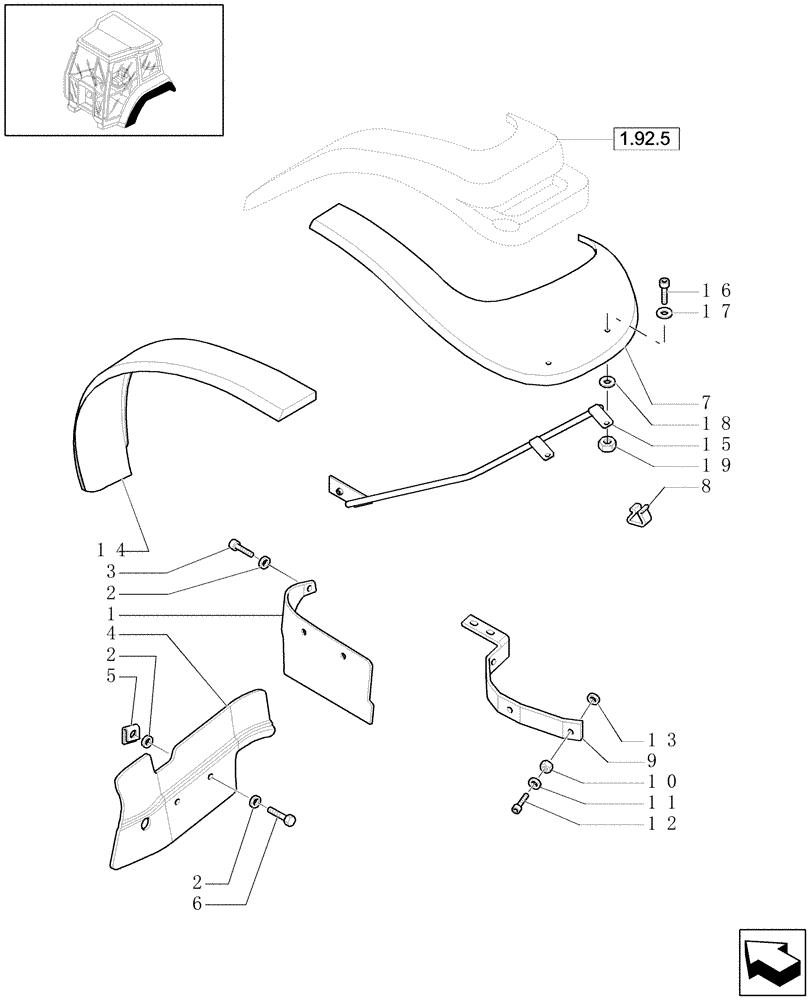

Запчасти Case IH MXU115 (1.92.5/01) - (VAR.869) MUDGUARDS SIDE SHIELD (10) - OPERATORS PLATFORM/CAB

1

82037004

MUDFLAP

LH

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

14шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

4

82034575

GUARD

RH

1шт.

4

82034574

GUARD

LH

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

5

82004582

CLIP,Square, 25mm

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

82033513

FENDER EXTENSION

RH, REAR, Serial Range: -C5402

1шт.

7

82033515

FENDER EXTENSION

LH, REAR, Serial Range: -C5402

1шт.

7

87327426

FENDER EXTENSION

RH, REAR, Start Serial: D5402

1шт.

7

87327425

FENDER EXTENSION

LH, REAR, Start Serial: D5402

1шт.

8

82010838

SPRING CLIP,0.5mm Thk

28шт.

9

82037055

SUPPORT

RH

1шт.

9

82037057

SUPPORT

LH

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

12шт.

12

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

6шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

82037058

FENDER EXTENSION

RH, SIDE, Serial Range: -C5402

1шт.

14

82037059

FENDER EXTENSION

LH, SIDE, Serial Range: -C5402

1шт.

14

82036146

FENDER EXTENSION

LH, SIDE, Start Serial: D5402

1шт.

14

82036148

FENDER EXTENSION

RH, SIDE, Start Serial: D5402

1шт.

15

82035422

SUPPORT

RH

1шт.

15

82035424

SUPPORT

LH

1шт.

16

83990985

BOLT,M8 x 1.25 x 25mm

M8X25

4шт.

17

81872600

WASHER,0.5" ID x 1.62" OD x 0.08" Thk

7/16"

4шт.

18

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

19

16104511

NUT,M8 x 1.25, Cl 8.8

4шт.
