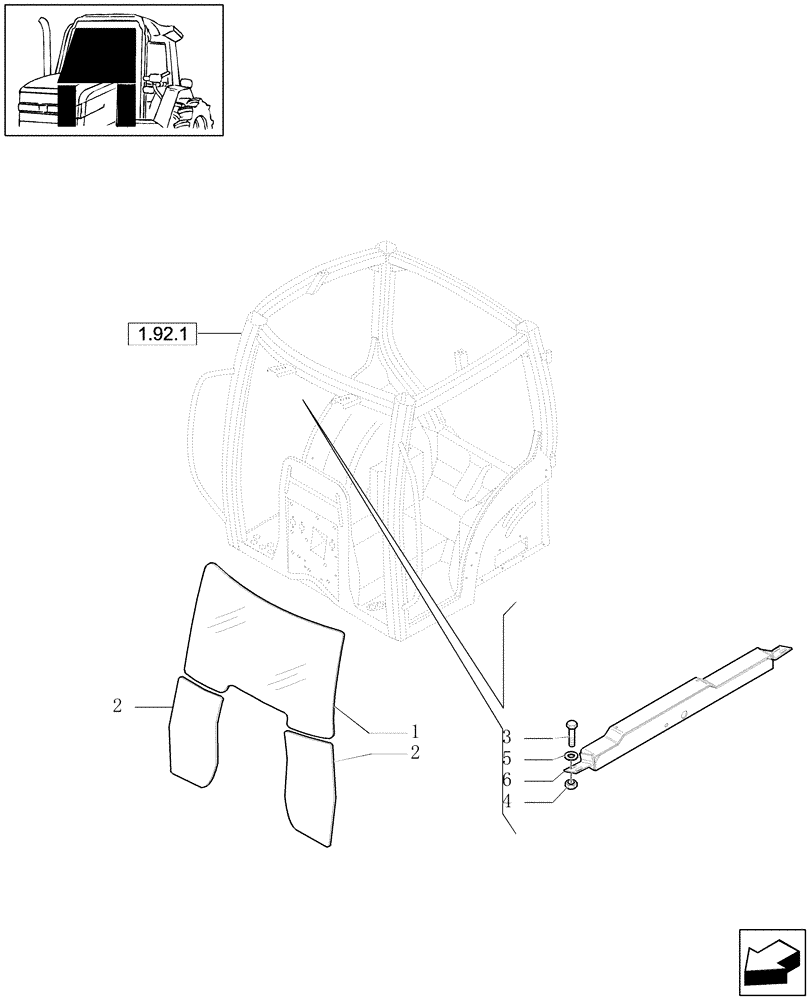

Запчасти Case IH MXU115 (1.92.3/01) - (VAR.053-056-545) WINDSHIELD AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB

1

87304257

WINDSHIELD

1шт.

2

87304261

CAB GLASS ASSY

LH

1шт.

2

87304259

CAB GLASS ASSY

RH

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

6

87327975

SUPPORT

1шт.
