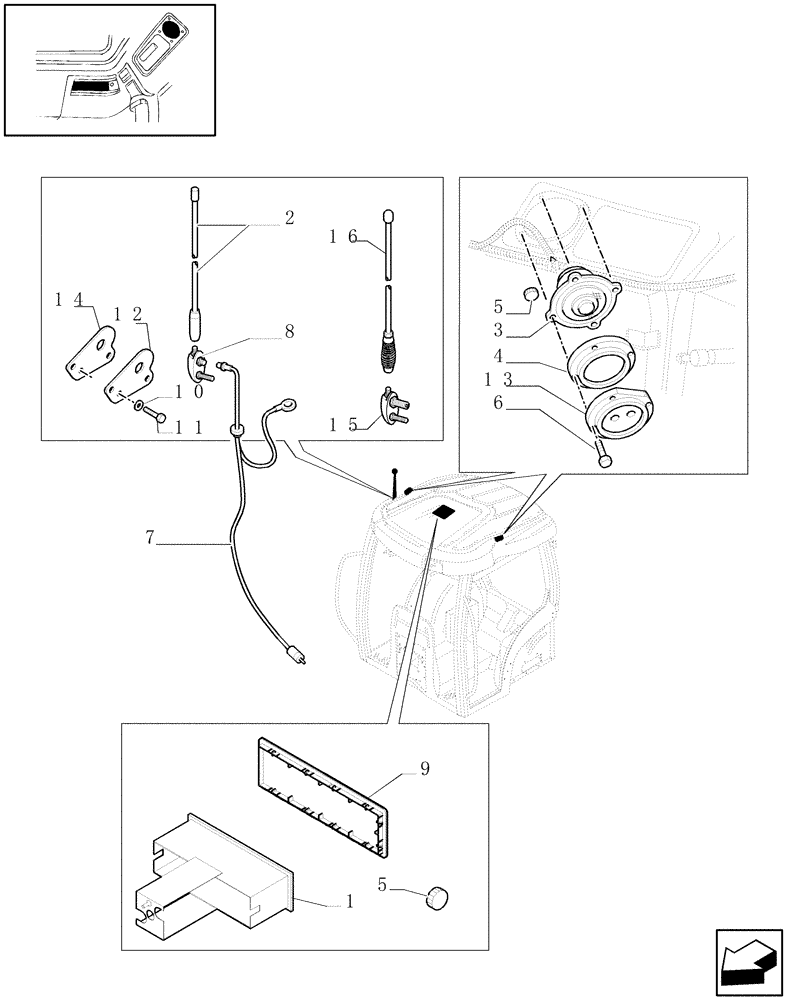

Запчасти Case IH MXU115 (1.91.6) - INTENDED FOR RADIO INSTALLATION (10) - OPERATORS PLATFORM/CAB

1

82036161

CASE

1шт.

2

82037610

ANTENNA

, Serial Range: -C5224

1шт.

2

87363131

ANTENNA

, Serial Range: D5224-C6233

1шт.

3

82014952

SPEAKER

, Serial Range: -C5826

2шт.

3

87704700

SPEAKER

, Start Serial: D5826

2шт.

4

82035354

COVER

, Serial Range: -C5551

2шт.

5

83935425

SPRING NUT,Prev Torque, #8

9шт.

6

15644001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

8шт.

7

82026196

CABLE

Antenna

1шт.

8

82031724

SUPPORT

, Serial Range: -C5224

1шт.

8

87363130

SUPPORT

, Serial Range: D5224-C6233

1шт.

9

82037617

PLATE

1шт.

10

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

11

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

12

87343347

PLATE

1шт.

13

87594895

COVER

Blanking, Start Serial: D5551

2шт.

14

87343418

GASKET

1шт.

15

84143971

SUPPORT

, Start Serial: D6233

1шт.

16

84143970

ANTENNA

, Start Serial: D6233

1шт.
