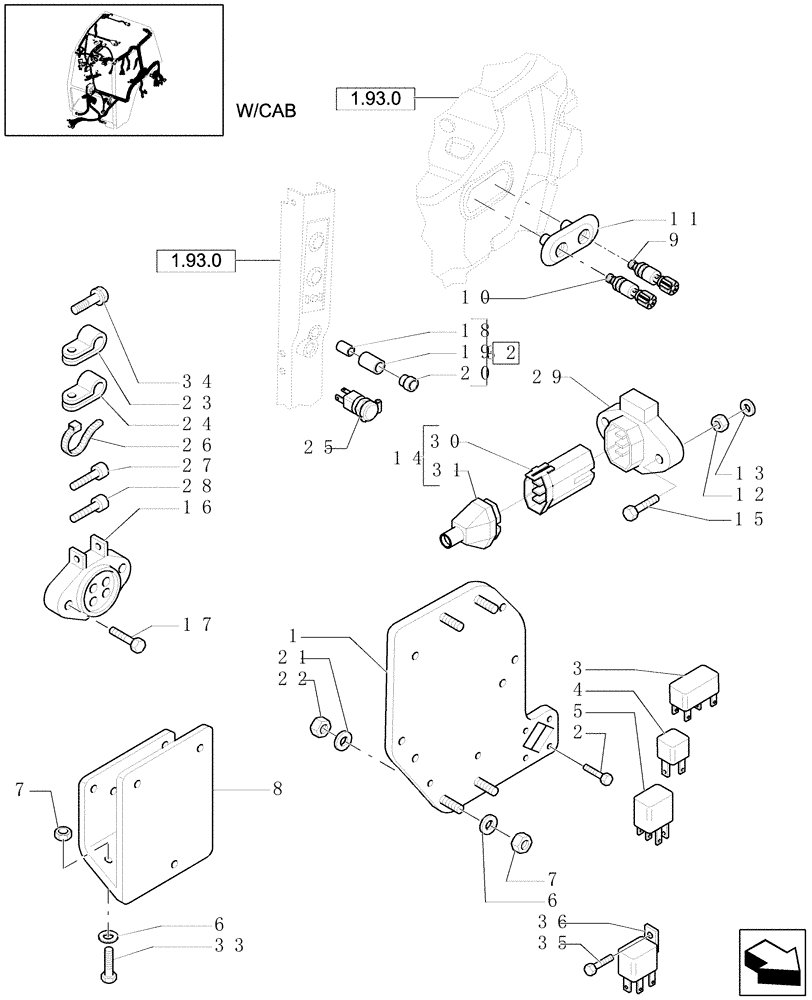

Запчасти Case IH MXU115 (1.91.4[05]) - SUPPORT FOR RELAY BOX, RELAY, POWER SOCKET AND SWITCHES (10) - OPERATORS PLATFORM/CAB

1

82031683

PLATE

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

1шт.

3

87304226

RELAY,12V, Combined, Black

Wiper Control

1шт.

4

82013124

RELAY,12V, 30A

30A

2шт.

4

82030798

RELAY,12V, 70A

70A

2шт.

5

82023238

RELAY,12V, 20A

60A/30A

6шт.

6

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

8шт.

7

15896211

NUT,M6, Cl 8

8шт.

8

87314581

BRACKET

1шт.

9

82003172

TERMINAL CONNECTOR

Black

1шт.

10

82003171

TERMINAL CONNECTOR

Red

1шт.

11

82003173

BEZEL

1шт.

12

10794014

NUT,M4, Cl 8

2шт.

13

14496201

WASHER,M4 x 9

2шт.

14

87301678

POWER SOCKET

Includes Ref.30, 31

1шт.

15

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

2шт.

16

83982634

POWER SOCKET

1шт.

17

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

2шт.

18

5148133

CIGARETTE LIGHTER

1шт.

19

5148132

LAMP SOCKET

1шт.

20

5148131

HOUSING

1шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

23

82029731

CLIP

D=50

1шт.

24

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26 mm dia.

2шт.

25

82002966

POWER SOCKET,M18 x 1

1шт.

26

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

3шт.

27

10903429

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

28

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

29

82029732

POWER SOCKET

1шт.

30

82033061

ELEC CONNECTOR

1шт.

31

12336344

CABLE TERMINAL

1шт.

32

5148077

CIGARETTE LIGHTER

ASSY., Includes Ref.18, 19, 20

1шт.

33

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

34

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

35

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

1шт.

36

87339422

RELAY,12V, 100A

35 A

1шт.
