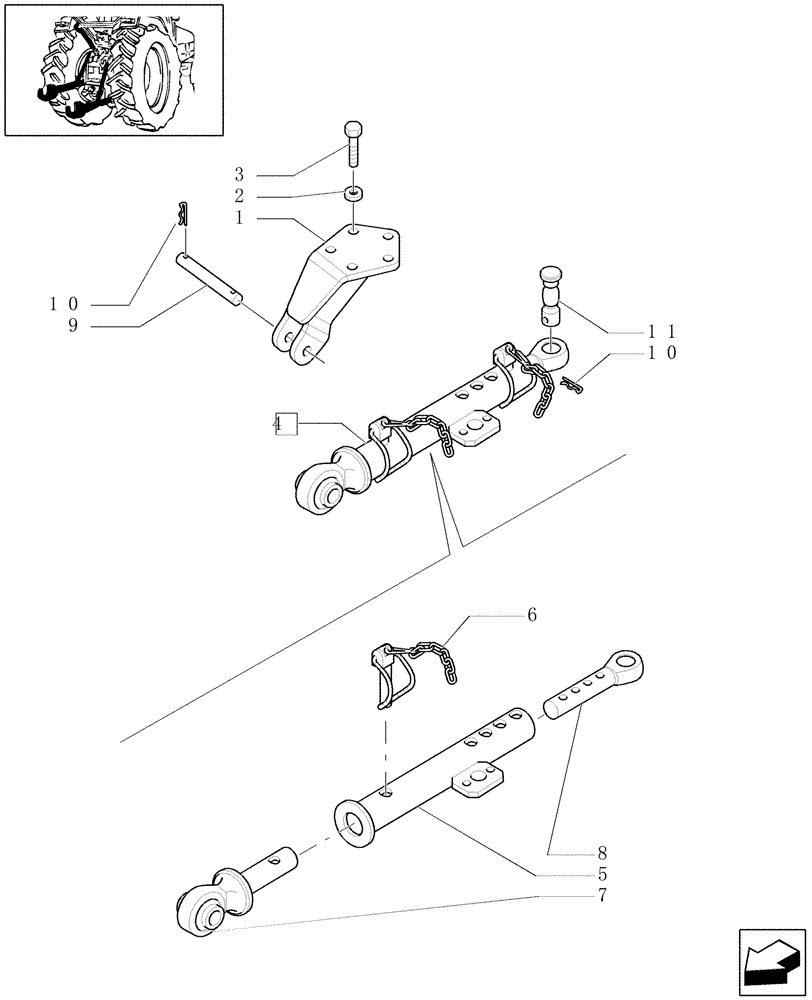

Запчасти Case IH MXU115 (1.89.9) - LATERAL STABILIZERS (09) - IMPLEMENT LIFT

1

5188925

SUPPORT

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

4

87308751

STABILIZER

Includes, Serial Range: Ref.5-8

2шт.

5

87308750

TUBE,458 mm L

1шт.

6

5198385

LINCH PIN,15mm OD

1шт.

7

87304920

LIFT LINK END ASSY

1шт.

8

87309293

ROD

1шт.

9

5125861

PIN,19mm OD x 105mm L

2шт.

10

10798401

COTTER PIN,6.60mm Dia x 40.00mm, ZND

6шт.

11

47133051

PIN,20mm OD x 59mm L

2шт.
