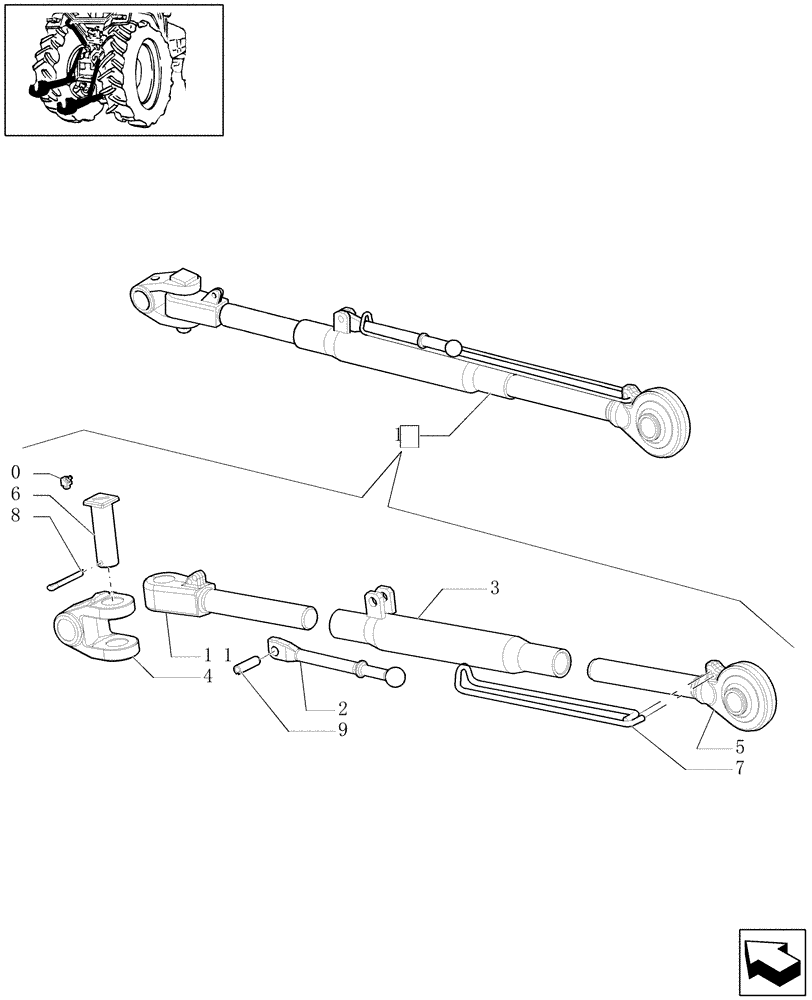

Запчасти Case IH MXU115 (1.89.6/ A) - THIRD-LINK SPRAG - PARTS (09) - IMPLEMENT LIFT

1

5197608

UPPER LINK

TOP LINK CAT.2, Includes, Serial Range: Ref.2-11

1шт.

2

5172394

LEVER

1шт.

3

5198078

TUBE,M30 x 3

1шт.

4

5161787

YOKE,28mm D x 28mm D

1шт.

5

5198084

TIE-ROD,M30 x 3, LH Threads

1шт.

6

5161789

PIN,34mm OD x 91mm L

1шт.

7

5198079

SPRING

1шт.

8

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

9

14613471

ROLL PIN,12mm OD x 40mm L

12X40

1шт.

10

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

11

82012615

LIFT LINK END ASSY,M30 x 3

1шт.
