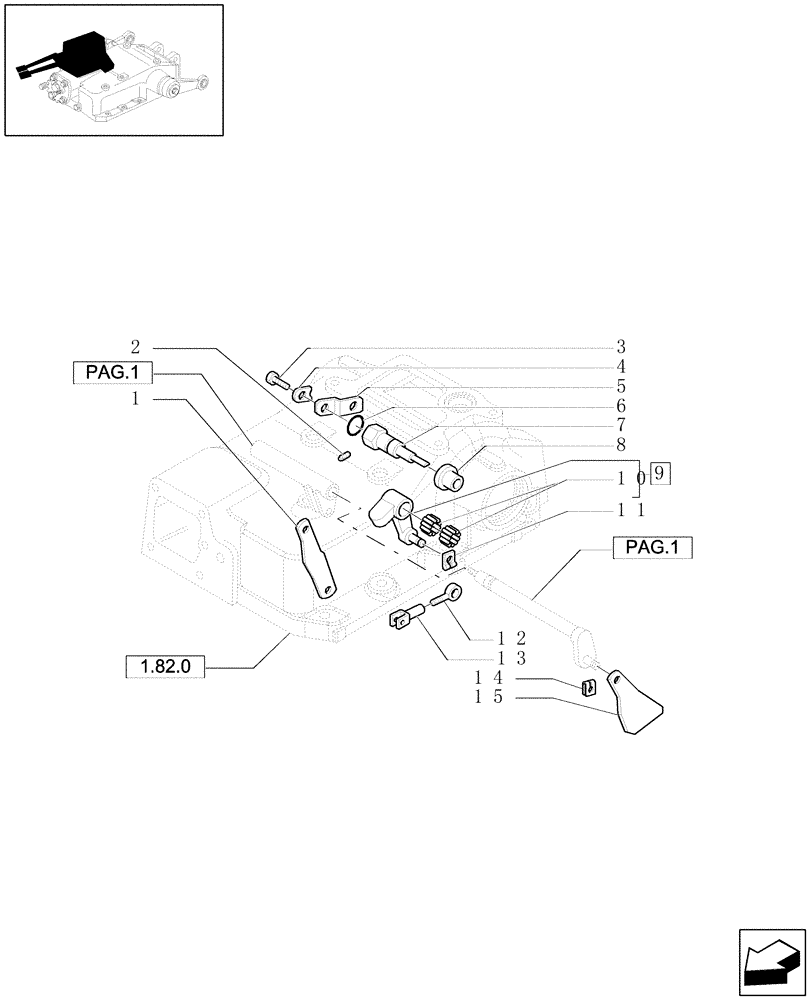

Запчасти Case IH MXU115 (1.82.5[03]) - LIFT- CONTROL PARTS (07) - HYDRAULIC SYSTEM

1

5122497

LEVER

1шт.

2

13739610

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

3

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

4

14198810

LOCKING PLATE,M10

1шт.

5

5135220

BRACKET

1шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

7

5135221

PIN

1шт.

8

5135219

SPACER,11.02mm ID x 19mm OD x 17mm L

1шт.

9

5193911

LEVER

Includes Ref.10

1шт.

10

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

2шт.

11

11064076

CLIP,M8 x 5 x 0.94mm

D=8

1шт.

12

5136355

TIE-ROD,M8 x 1, 48mm L

1шт.

13

5173352

CLEVIS,M8 x 1

1шт.

14

11065976

CIRCLIP,M10, Ext

1шт.

15

5117143

LEVER

1шт.
