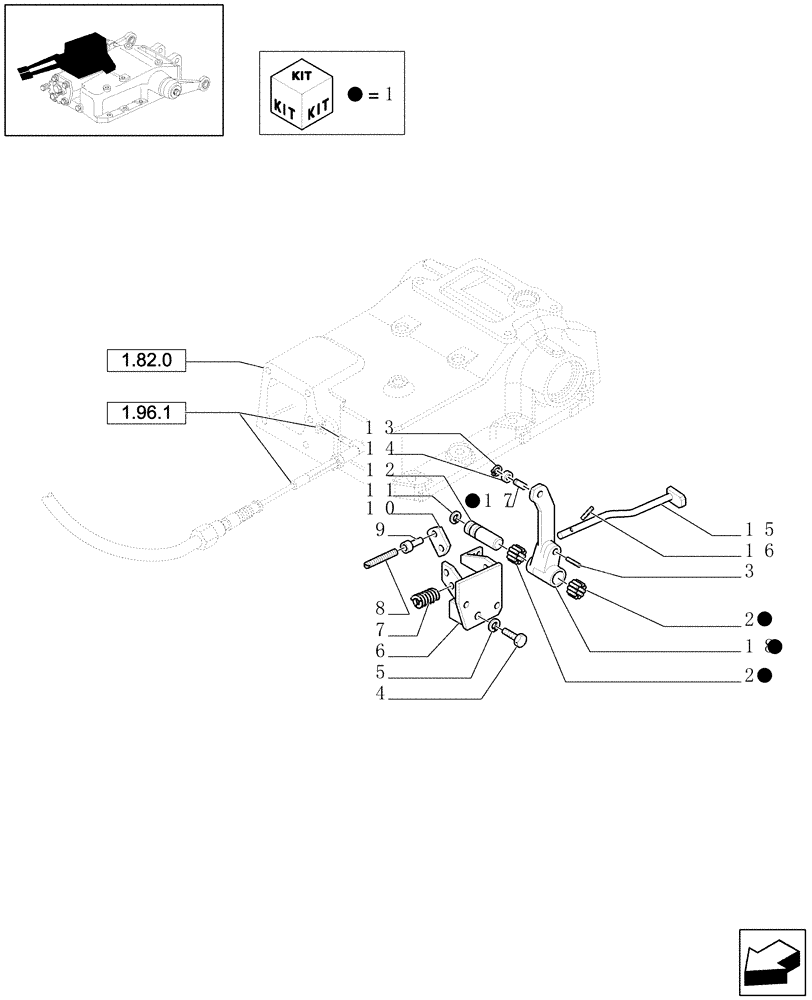

Запчасти Case IH MXU115 (1.82.5[02]) - LIFT - CONTROL PARTS (07) - HYDRAULIC SYSTEM

1

5126221

ROD

Includes Ref.2

1шт.

2

4964519

ROLLER BEARING,Needle, 18mm ID x 16mm OD x 10.5mm W

2шт.

3

14162070

LOCK PIN,M3 x 22, Slotted

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

5129400

SUPPORT

1шт.

7

4959139

SPRING,Compression, 15.5mm OD x 71mm L

1шт.

8

13791321

SET SCREW,Hex Skt, M8 x 50mm, Flat Pt

1шт.

9

5121523

NUT,M8 x 1.25 x 26mm

1шт.

10

5120284

PAD

1шт.

11

13397576

CIRCLIP,12mm ID

D=12

1шт.

12

5117156

PIN,12mm OD x 61.5mm L

1шт.

13

11065676

SNAP RING,M8, Ext

1шт.

14

5111028

ROLLER,18mm OD x 10mm L

1шт.

15

5120285

ROD

1шт.

16

14163970

COTTER PIN,M4 x 20, Slotted

1шт.

17

5129392

PIN,7.5mm OD x 22.5mm L

1шт.

18

5126220

CONNECTING LINK

1шт.
