Запчасти Case IH MXU115 (1.82.1) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

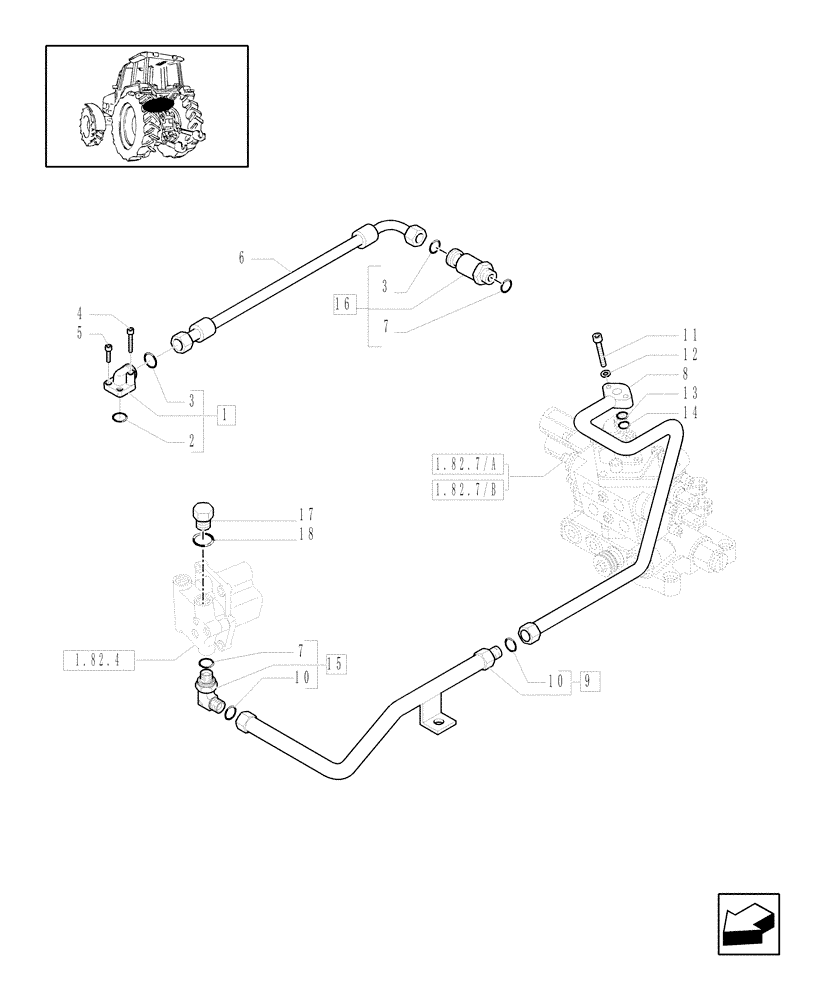

Схема запчастей Case IH MXU115 - (1.82.1) - LIFTER, LINES (07) - HYDRAULIC SYSTEM
10
13
1
3
7
12
1.82.7/a
4
5
15
2
6
3
18
1.82.4
9
17
1.82.7/b
8
11
7
10
14
16

Артикул

Название

Примечание

Количество

1

47134223

FLANGE

Includes Ref.2, 3

1шт.

2

14458381

O-RING,32.99mm ID x 2.62" Width

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

5

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

87304916

HOSE,16mm ID x 640mm L, SAE 100R16

1-3/16"-12, 640 MM

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

87305025

TUBE,16 mm OD

Two Control Valves

1шт.

8

87305027

TUBE

Var.265, Three Control Valves

1шт.

9

47137561

TUBE

1"-14, Includes Ref.11

1шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

13

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

14

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

15

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

M22x15.1"-14, Includes Ref.8, 11

1шт.

16

47125148

HYD CONNECTOR

1шт.

17

10119414

PLUG,M18 x 1.5 x 16

1шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 19
