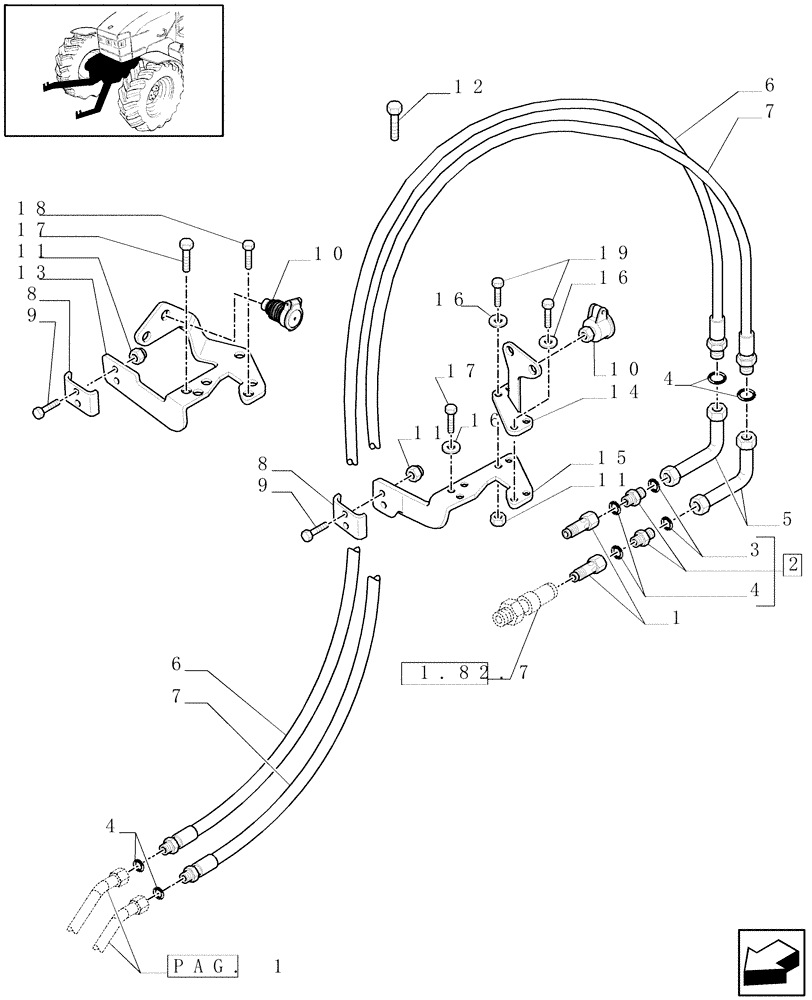

Запчасти Case IH MXU115 (1.81.9/01[02]) - (VAR.340) 2 FRONT FAST-FITTING CONNECTIONS CONNECTED TO THE REAR CONTROL VALVES - PIPES (07) - HYDRAULIC SYSTEM

1

83972881

COUPLING

2шт.

2

5185524

HYD CONNECTOR

1"-14, 6 1/2, Includes Ref. 21, 22

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

5

47057034

TUBE

1"-14

2шт.

6

47057082

HOSE,12.70 mm ID x 3600.00 mm, SAE J516

RH

1шт.

MXU100, MXU110

1шт.

6

47057084

FLEXIBLE HOSE,12.70 mm ID x 3800.00 mm, SAE J516

RH

1шт.

MXU115, MXU130

1шт.

7

47057083

HOSE,12.70 mm ID x 3700.00 mm, SAE J516

RH

1шт.

MXU100, MXU110

1шт.

7

47057085

FLEXIBLE HOSE,12.70 mm ID x 3900.00 mm, SAE J516

RH

1шт.

MXU115, MXU130

1шт.

8

47057073

CLAMP

1шт.

9

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

10

47057077

SOCKET

2шт.

11

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

3шт.

12

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

13

47057604

SUPPORT

, Serial Range: -C6483

1шт.

14

87555045

BRACKET

, Start Serial: D6483

1шт.

15

87555049

BRACKET

, Start Serial: D6483

1шт.

16

14499431

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

5шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

18

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

, Serial Range: -C6483

1шт.

19

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D6483

2шт.
