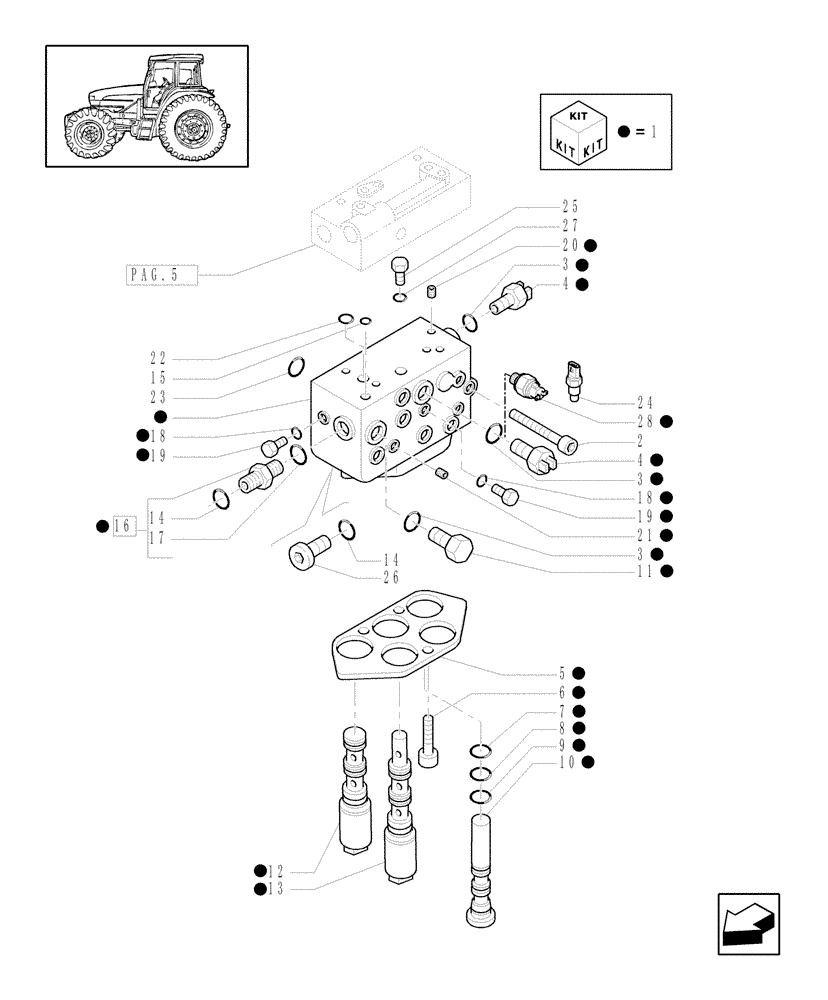

Запчасти Case IH MXU115 (1.80.7[04]) - 4WD - PTO, CLUTCH - CONTROL VALVE AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

1

5195591

CONTROL VALVE

1шт.

2

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

M10X1,25X90

3шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

3шт.

4

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

Q.ty 2 BSN ACP262311, Q.ty 1 ASN ACP262312

1шт.

5

5195317

PLATE

1шт.

6

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

7

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

9

14453681

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

10

5195316

PLUG

1шт.

11

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

12

87723774

SOLENOID VALVE

114mm

3шт.

13

5196873

SOLENOID VALVE

132mm

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

15

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

16

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16X1,5, 11/16"-16UNF - 2A, Includes Ref.14, 17

1шт.

17

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

18

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

5шт.

19

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

20

5171508

RESTRICTOR

1шт.

21

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

9шт.

22

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

23

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

24

82028133

SENSOR,3/8"-18

Trans.Temp., W/Trans.12x12, MXU100, MXU115

1шт.

25

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

26

10119340

PLUG,M16 x 1.5 x 15, Brass

1шт.

27

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

28

87304277

PRESSURE SWITCH

, Start Serial: D5158

1шт.
