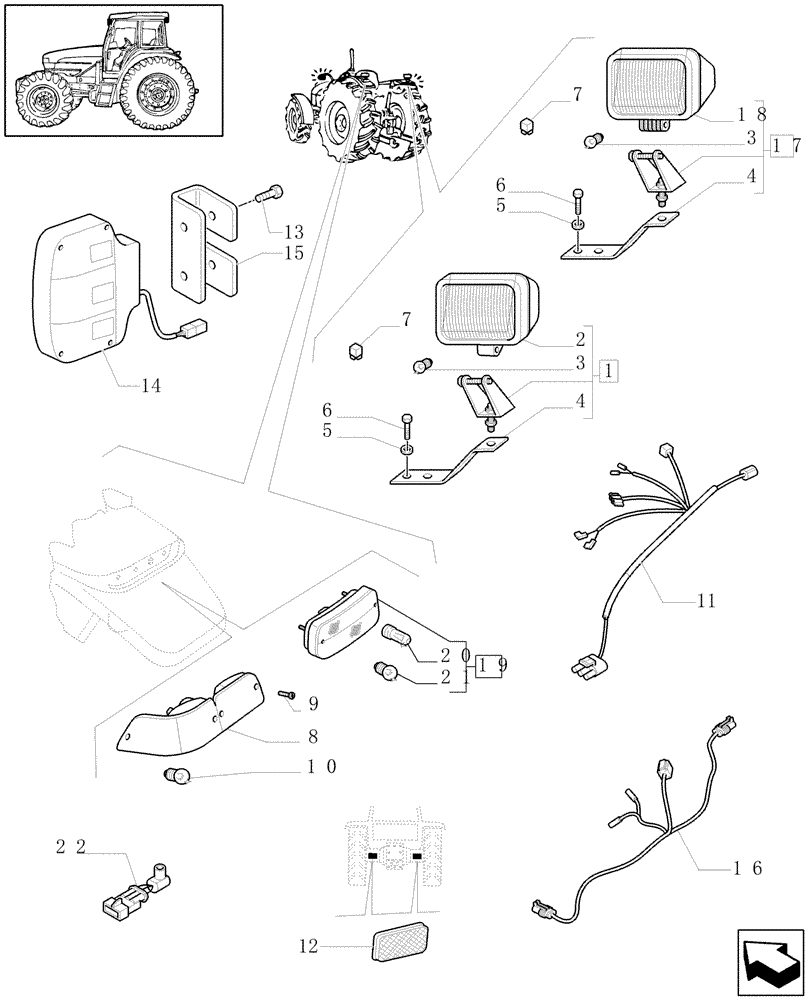

Запчасти Case IH MXU115 (1.75.6[03]) - REAR LIGHT (06) - ELECTRICAL SYSTEMS

1

82022839

HEADLAMP

L/Cab, Includes Ref.2, 3, 4

2шт.

2

82017222

SEALED BEAM UNIT

1шт.

3

14151590

BULB,H3, 12V, 55W

12V, 55W

1шт.

4

82029010

BRACKET

1шт.

5

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

7

82023238

RELAY,12V, 20A

1шт.

8

279225A1

TAIL LAMP,12V, Amber/Red

LH, Includes Ref.10

1шт.

8

279226A1

TAIL LAMP,12V, Amber/Red

RH

1шт.

9

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

Pan Hd, M6 x 2 x 14

6шт.

10

14144690

BULB,P21/5W, 12V, 21/5W

5W

2шт.

11

82037640

ELECTRIC CABLE

REAR FENDER, Serial Range: -C5210

1шт.

12

82002957

REFLECTOR

2шт.

12

82034755

REFLECTOR,RED

W/Var.007

1шт.

13

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

4шт.

14

82029208

SIDE LAMP ASSY

W/Var.007

2шт.

15

82033596

BRACKET

W/Var.007

2шт.

16

87313643

WIRE HARNESS

, Start Serial: D5210

1шт.

17

87314952

WORKING LIGHT

, Start Serial: D5210

2шт.

18

14151590

BULB,H3, 12V, 55W

, Start Serial: D5210

1шт.

19

82026301

TAIL LAMP,12V, 21W, Amber/Red

LH

1шт.

19

82026300

TAIL LAMP,12V, 21W, Amber/Red

RH

1шт.

20

529068

BULB,#1156, 12V, 21W

1шт.

21

14144690

BULB,P21/5W, 12V, 21/5W

1шт.

22

47137069

ELECTRIC CABLE

1шт.
