(1.74.2[01B]) - BATTERY, COVERS AND RELATED SUPPORTS - D5506

Запчасти Case IH MXU115 (1.74.2[01B]) - BATTERY, COVERS AND RELATED SUPPORTS - D5506 (06) - ELECTRICAL SYSTEMS

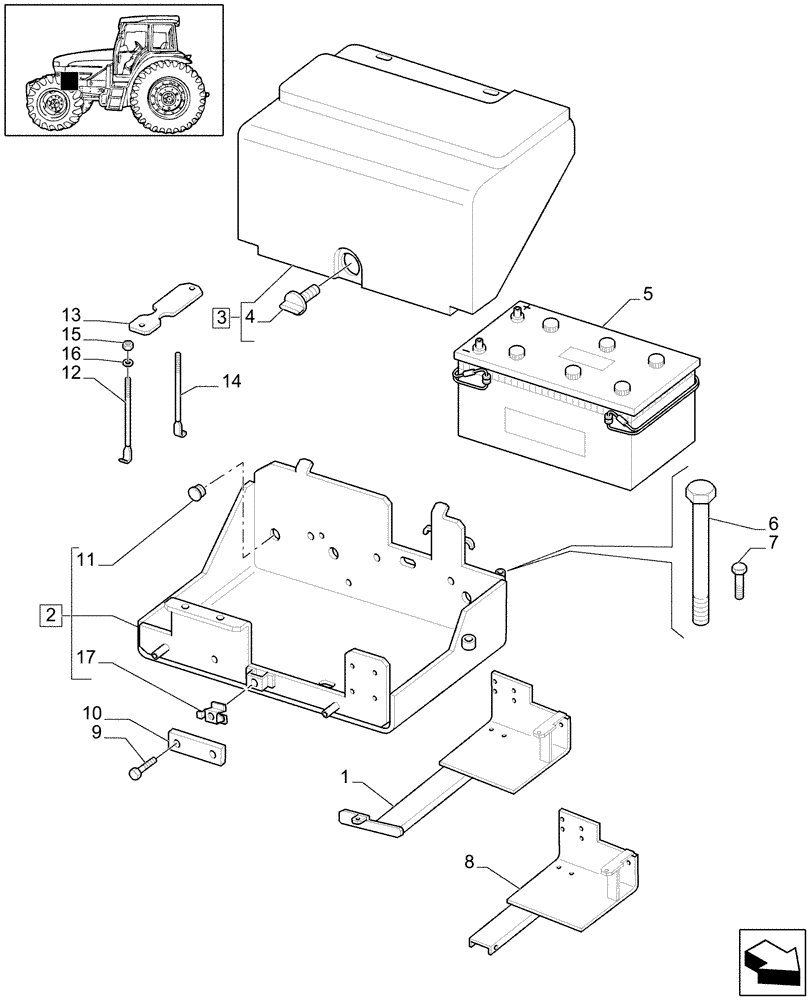

Схема запчастей Case IH MXU115 - (1.74.2[01B]) - BATTERY, COVERS AND RELATED SUPPORTS - D5506 (06) - ELECTRICAL SYSTEMS
9
14
4
10
2
12
7
8
11
16
15
5
3
17
13
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87393208

SUPPORT

W/Cab

1шт.

2

87579918

BATTERY TRAY

Includes Ref.11

1шт.

3

87316828

BATTERY BOX

Includes Ref.4

1шт.

4

81866169

LATCH

1шт.

5

BMF31GW

WET BATTERY

US, 12V-107AH-800A

1шт.

5

CCMF31GW

WET BATTERY

Canada, 12V-107AH-800A

1шт.

5

B45630W

WET BATTERY

US, 12V-132AH-960CCA

1шт.

5

CC45630W

WET BATTERY

Canada, 12V-132AH-960CCA

1шт.

6

87316093

BOLT

M10 x 1.5 x 150

2шт.

7

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

8

87318031

SUPPORT

L/Cab

1шт.

9

80088557

SCREW

3/4"-10 x 2", L/Cab

2шт.

10

81865474

SPACER

L/Cab

1шт.

11

81869893

SUPPORT

3шт.

12

82020168

ROD

L=MM.235

1шт.

13

82020166

BRACKET

1шт.

14

82020470

ROD

L=MM.100

1шт.

15

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

83991620

RETAINER

1шт.
