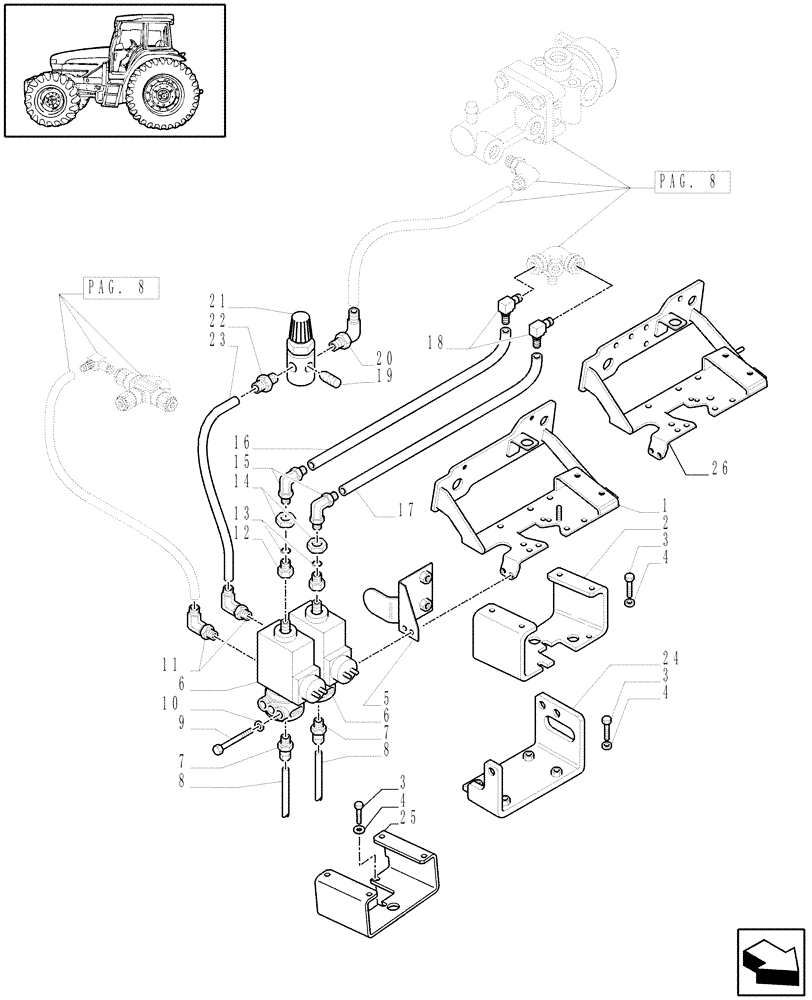

Запчасти Case IH MXU115 (1.68.6[07]) - (VAR.178-242-243-385-448) TRAILER AIR BRAKE - AIR TANK AND SCHIELDS (05) - REAR AXLE

1

82034425

SUPPORT

, Serial Range: -C5556

1шт.

2

87356948

SUPPORT

, Serial Range: -ACP280170

1шт.

W/VAR.178-385 Only

1шт.

3

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

5

82034071

SUPPORT

1шт.

6

82006252

CONTROL VALVE

2шт.

7

82006828

ADAPTER

2шт.

8

82019793

HOSE,6.00mm OD x 70.00mm

6x1x70mm

2шт.

9

16046121

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

11

82017199

ELBOW

2шт.

12

82019833

ADAPTER

2шт.

13

82019835

O-RING

2шт.

14

82019834

NUT

2шт.

15

82019627

ELBOW

2шт.

16

87315494

TUBE,6 mm DIA x 300 mm L

6x1x300mm

1шт.

17

82023980

HOSE

6x1x315mm

1шт.

18

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

2шт.

19

82017203

PLUG

1шт.

20

82024156

ADAPTER

1шт.

21

82016887

CONTROL VALVE

1шт.

22

82030305

HYD CONNECTOR

1шт.

23

82030361

HOSE

6x1x333mm

1шт.

24

87359121

SUPPORT

1шт.

W/VAR.242-243-448 Only

1шт.

25

87546781

SUPPORT

, Start Serial: ACP280171

1шт.

26

87529272

SUPPORT

, Start Serial: C5580

1шт.

W/Pneumatic Trailer Brake (UK-Italy)

1шт.

26

87529275

SUPPORT

, Start Serial: C5580

1шт.

W/Pneumatic Trailer Brake (Universal)

1шт.

26

87597923

SUPPORT

, Start Serial: D5580

1шт.

W/Pneumatic Trailer Brake (UK-Italy)

1шт.

26

87597999

SUPPORT

, Start Serial: D5580

1шт.

W/Pneumatic Trailer Brake (Universal)

1шт.
