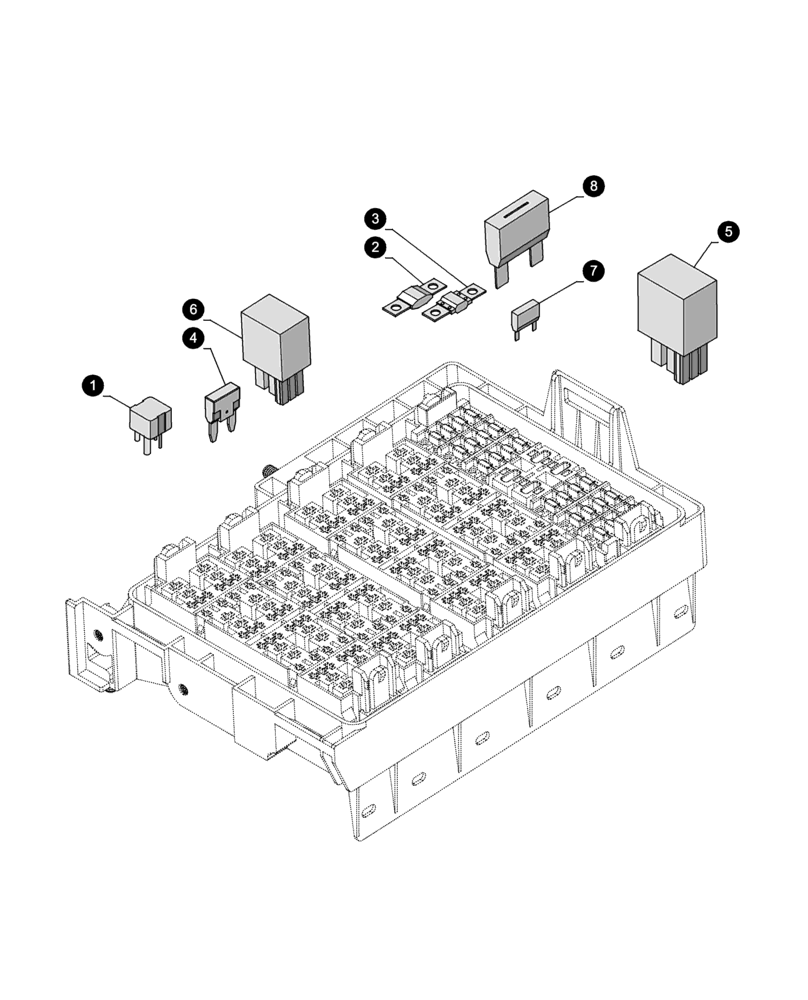

Запчасти Case IH MXU115 (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL

1

82030798

RELAY,12V, 70A

12V, 70A

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with STD

1шт.

From serial N.(ACP266890 Basildon Prod./EKP007609 St. Valentin Prod.)

1шт.

1

82012872

RELAY,70A

12V, 70A

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with STD

1шт.

From serial N.(ACP266890 Basildon Prod./EKP007609 St. Valentin Prod.)

1шт.

2

82033971

FUSE,100A, Maxi, Violet

100A, Maxival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

2

87422637

FUSE,125A, Midival

125A, Green

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

3

82023624

FUSE,250A, Mega

250A

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

10401290

FUSE,25 amp Mini

25A, Minival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

10402190

FUSE,30A, Mini

30A, Minival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

10401190

FUSE,20A, Mini, Yellow

20A, Minival, Yellow

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

87524877

FUSE,15A, Mini, Blue

15A, Minival, Blue

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

87522597

FUSE,10A, Mini, Red

10A, Minival, Red

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

10395890

FUSE,5A, Mini, Beige

5A, Minival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

121850A1

FUSE,3A, Mini, Violet

3A, Minival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

4

82023624

FUSE,250A, Mega

250A, Megaval

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

5

84543666

RELAY,12V, 40A, Mini

12V, 30A

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with STD

1шт.

5

87339422

RELAY,12V, 100A

12V, 35A

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

6

84543528

RELAY,12V, 20A, Micro

15/25A, Flasher

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with VAR. 769, VAR. 178, 242, 243, 385, 448

1шт.

After Date 16 October 2007

1шт.

6

86619908

RELAY,12V, 150A

12V

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with VAR. 203

1шт.

After Date 13 September 2006

1шт.

6

87304226

RELAY,12V, Combined, Black

12V

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with STD

1шт.

6

82017871

RELAY,12V, 20A

12V, 35A, Maxival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with VAR. 704

1шт.

7

87522595

FUSE,7.5A, Mini, Brown

7.5A, Minival, Beige

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

7

84174070

FUSE,30A, Orange

30A

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

8

84183837

FUSE,80A, Maxil, Natural

80A, Maxival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

8

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

8

5173264

FUSE,30A, Maxi, Green

30A, Midival

1шт.

Valid with MXU100-MAXXUM X-LINE TRACTOR, MXU100-VALUE TRACTOR, MXU110-MAXXUM X-LINE TRACTOR, MXU110-VALUE TRACTOR, MXU115-MAXXUM X-LINE TRACTOR, MXU115-VALUE TRACTOR, MXU130-MAXXUM X-LINE TRACTOR, MXU130-VALUE TRACTOR Models

1шт.

Valid with VAR. 110, 120

1шт.

Before Date 27 September 2006

1шт.
