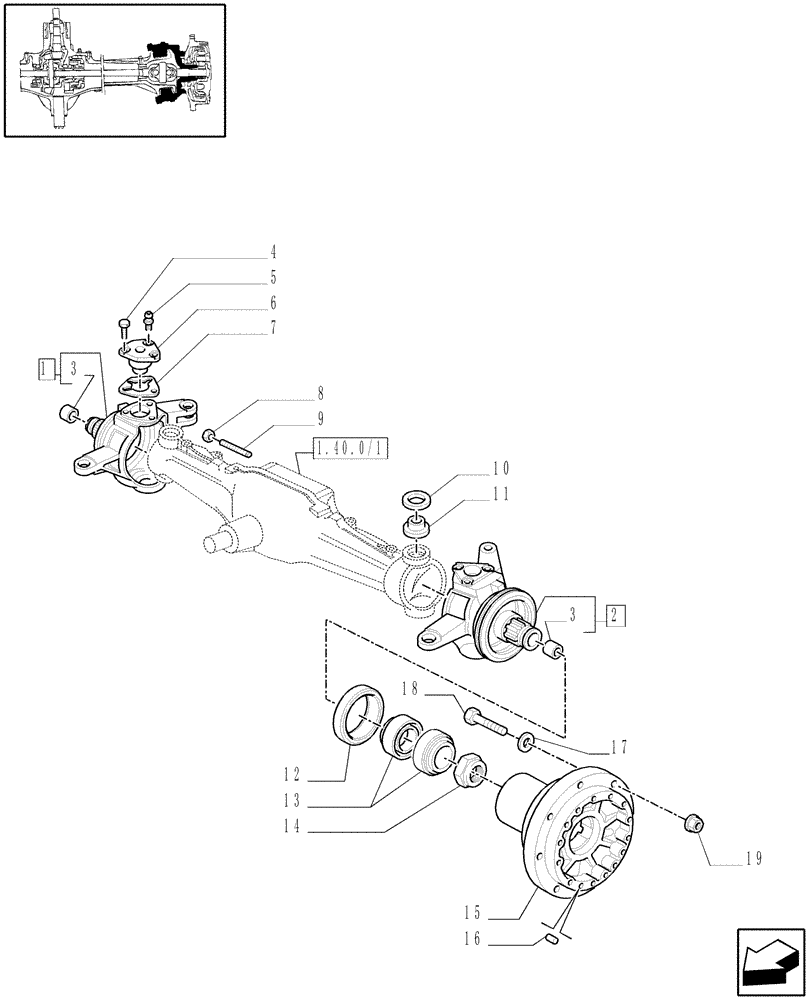

Запчасти Case IH MXU115 (1.40.0/02) - 4WD FRONT AXLE - STEERING AXLES - HUBS (04) - FRONT AXLE & STEERING

1

5171556

STEERING KNUCKLE,RH

RH, Includes Ref.3

1шт.

1

5171556R

REMAN-AXLE

MXU110, MXU115, MXU130, All VALUE TRACTOR, MXU110 MAXXUM X-LINE TRACTOR, All RH (7/05-)

1шт.

1

5171556C

CORE-AXLE

Return Number

1шт.

2

5171554

STEERING KNUCKLE,LH

LH, Includes Ref.3

1шт.

2

5171554R

REMAN-AXLE

MXU110, MXU115, MXU130, All VALUE TRACTOR, MXU110 MAXXUM X-LINE TRACTOR, All LH (7/05-)

1шт.

2

5171554C

CORE-AXLE

Return Number

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

6

5137239

BALL STUD

BALL PIN

4шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

12

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165X190X15.5/16.5

2шт.

13

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

95 x 135 x 20

4шт.

14

5142020

NUT,Hex, M75 x 2

M75 x 20

2шт.

15

5191785

HUB

, Serial Range: -C5201

2шт.

15

87341362

HUB

, Start Serial: D5201

2шт.

16

4985063

DOWEL,12mm OD x 20mm L

4шт.

17

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

18

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

16шт.

19

87678013

NUT,M16 x 1.5

16шт.
