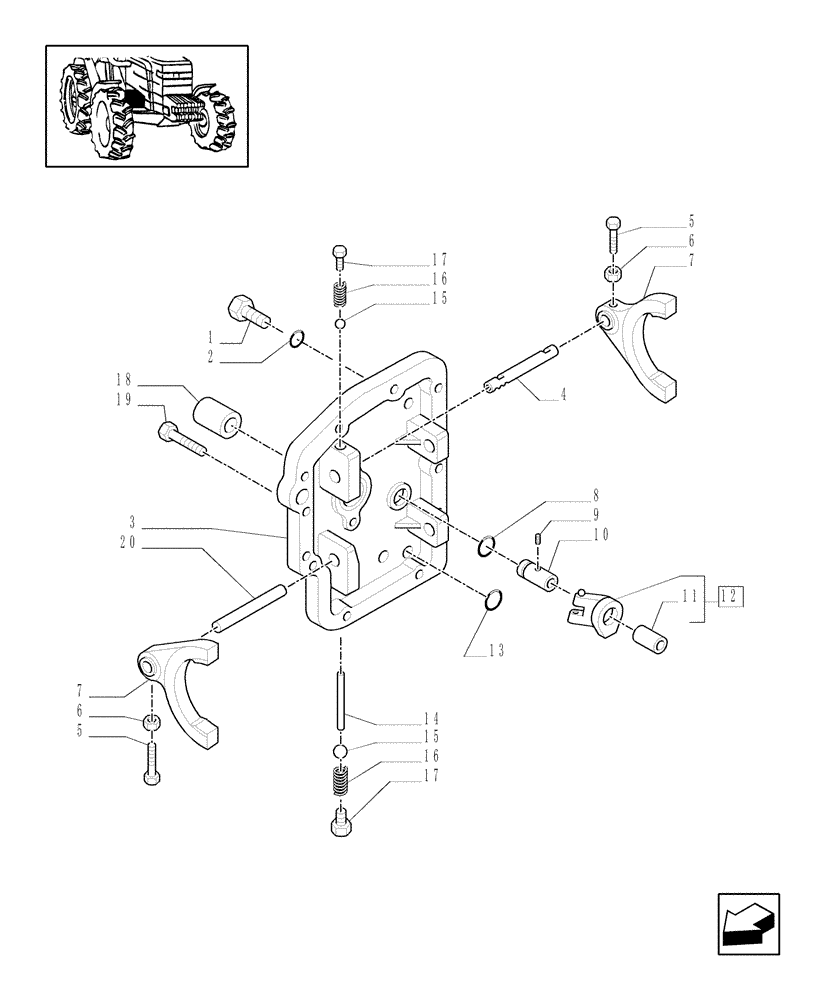

Запчасти Case IH MXU115 (1.29.0/01[01]) - (VAR.110-120) TRANSMISSION 12X12 - INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

82031530

COVER

Includes Ref.18, Serial Range: -C5276

1шт.

3

87306748

COVER

, Start Serial: D5276

1шт.

4

47137662

ROD

3-4 Gear

1шт.

5

81804978

SET SCREW,Hex Hd, 3/8"-24 x .97", Cone Pt

2шт.

6

80087308

NUT

Jam,3/8"-24

2шт.

7

81864551

SHIFTER FORK

2шт.

8

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

9

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

10

82038633

CONTROL SHAFT

1шт.

11

5167877

BUSHING,24mm ID x 27mm OD x 20mm L

24X27X20

1шт.

12

82031063

LEVER

Includes Ref.11

1шт.

13

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

14

81864543

PIN,9.47mm OD x 118.25mm L

1шт.

15

20063480

BALL,Metal, 9.525mm, Gr 100

D=3/8"

2шт.

16

83407013

SPRING

2шт.

17

89625178

PLUG

2шт.

18

5167877

BUSHING,24mm ID x 27mm OD x 20mm L

24X27X20

1шт.

19

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

20

47137661

ROD

1-2 Gear

1шт.
