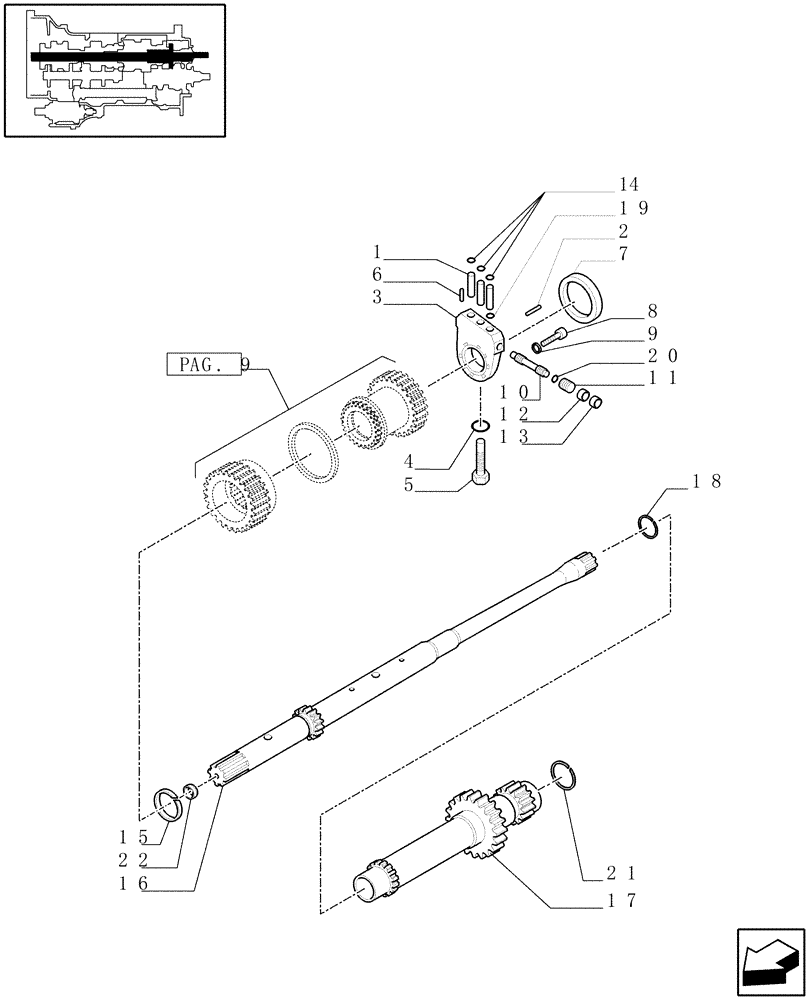

Запчасти Case IH MXU115 (1.28.1/03[10]) - (VAR.129) 16X16 (SPS) GEARBOX - SLOW RANGE DRIVING SHAFT AND PTO SHAFT (03) - TRANSMISSION

1

82850838

TUBE,14.3 mm OD, 76 mm Length

3шт.

2

81867453

GROOVED PIN

2шт.

3

47128751

MANIFOLD

1шт.

4

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

90 Duro, .644" ID x .087" Thk

1шт.

5

81869155

PIN,16.74mm OD x 96mm L

1шт.

6

81863107

PLUG

4шт.

7

82857005

BEARING ASSY,59.98mm ID x 84.98mm OD x 15.95mm W

1шт.

8

14305324

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

9

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

4шт.

10

81863917

SHAFT

1шт.

11

81867109

SPRING

2шт.

12

81869801

SEAL

2шт.

13

81863424

PLUG

2шт.

14

83925620

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

90 Duro

6шт.

15

81867117

SEAL,32mm ID x 36.60mm OD x 1.60mm Thk

36.6 x 32 x 1.6

1шт.

16

47126897

SHAFT

1шт.

17

47137609

DRIVE SHAFT

30 KPH

1шт.

17

87396959

DRIVE SHAFT,415mm L

40 KPH

1шт.

18

5196019

SNAP RING,1.5mm Thk, Ext

1шт.

19

47128758

FRICTION WASHER

2шт.

20

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" Tube OD

1шт.

21

47137455

OIL SEAL,32mm ID x 40mm OD x 4mm Thk

32x40x4

1шт.

22

81863712

PLUG

1шт.
