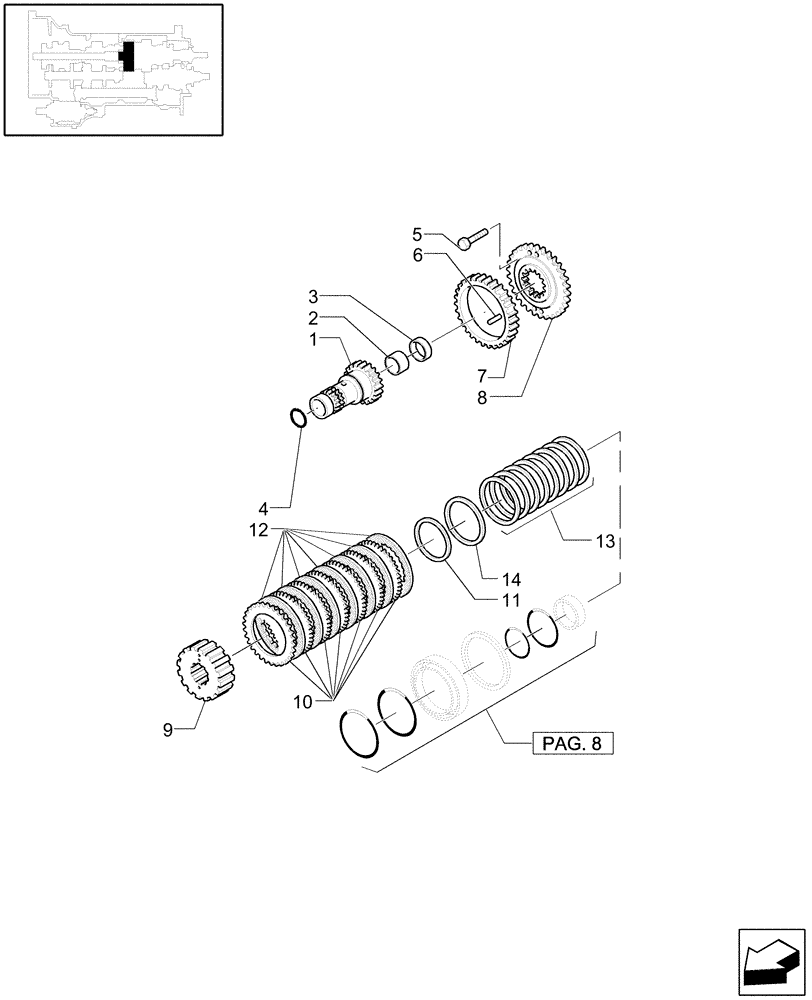

Запчасти Case IH MXU115 (1.28.1/03[07]) - (VAR.129) 16X16 (SPS) GEARBOX - GEARBOX DRIVEN SHAFT AND CLUTCH PLATES (03) - TRANSMISSION

1

47131847

DRIVEN SHAFT

1шт.

2

81863564

BEARING ASSY,Needle, 35.02mm ID x 45mm OD x 30mm W

1шт.

3

81863669

BEARING ASSY,Needle, 45mm ID x 52mm OD x 20mm W

1шт.

4

11070576

SNAP RING,M75, Ext

D=75

1шт.

5

81867112

SCREW,M6 x 8.3mm, Cl 4.8

4шт.

6

83962656

COTTER PIN

M3.2X28

2шт.

7

81872787

PLATE

1шт.

8

82002244

PISTON,80.64mm ID x 168.45mm OD x 11mm Thk

1шт.

9

5196681

HUB

1шт.

10

5199723

CLUTCH PLATE

MM.1.77-1.83

1шт.

10

5199724

CLUTCH PLATE

MM.1.97-2.03

1шт.

10

82002190

CLUTCH PLATE

MM.2.18-2.22

1шт.

11

81865530

CIRCLIP

1шт.

12

5199725

CLUTCH PLATE

9шт.

13

81864187

SPRING

8шт.

14

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

1шт.
