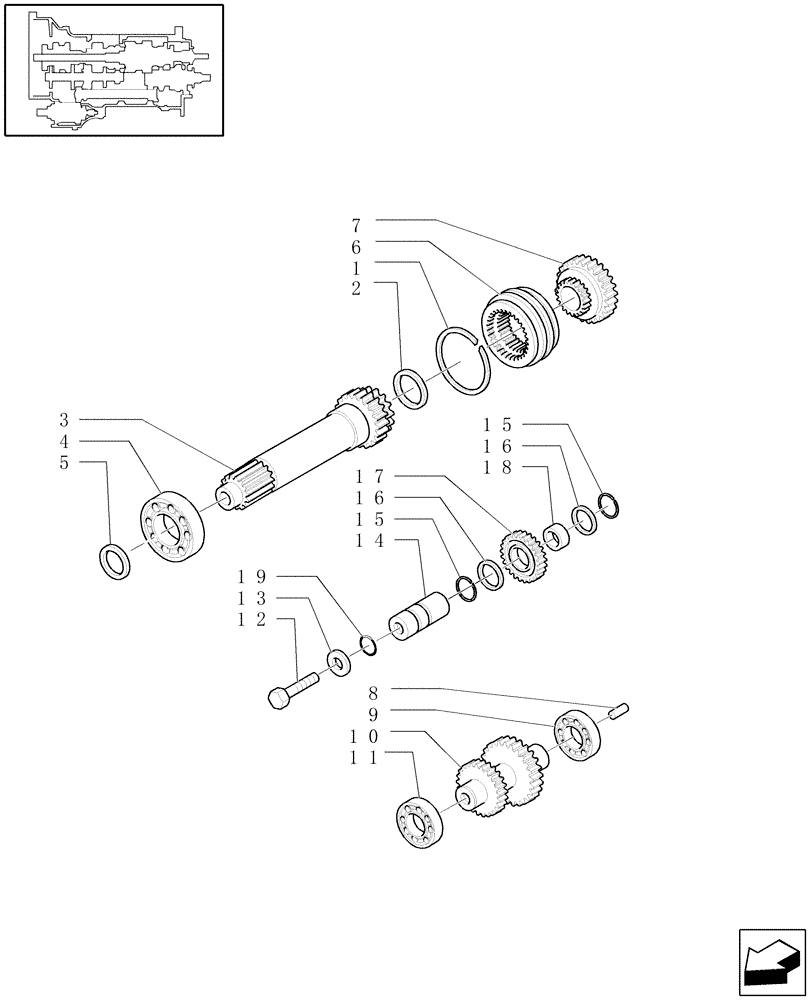

Запчасти Case IH MXU115 (1.28.1/02[01]) - (VAR.110-120) TRANSMISSION 12X12 - TRANSMISSION GEARS (03) - TRANSMISSION

1

81864658

SNAP RING,55.2mm ID

1шт.

2

81801990

SEAL,30.26mm ID x 39.7mm OD x 6.35mm Thk

1шт.

3

5195022

SHAFT

1шт.

4

83908455

BALL BEARING

1шт.

5

81864672

SEAL,47mm ID x 62mm OD x 6mm Thk

1шт.

6

47124378

SYNCHRONIZER

Forward/Reverse

1шт.

7

81869901

GEAR,38 T/ 39 T

1шт.

8

81864459

PIN,2mm OD x 6mm L, Coiled

1шт.

9

83983006

BEARING ASSY,25mm ID x 62mm OD x 17mm W

1шт.

10

81864666

GEAR,33 T/40 T

1шт.

11

81875518

BEARING ASSY,35mm ID x 72mm OD x 17mm W

1шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

13

47137272

SEALING WASHER,M10

SEAL WASHER

1шт.

14

81864420

SHAFT

1шт.

15

82923182

SNAP RING,1 1/8", Ext

2шт.

16

83926456

THRUST WASHER

2шт.

17

81864414

GEAR,35 Teeth

1шт.

18

81864069

NEEDLE BEARING,32.45mm ID x 38mm OD x 19.8mm W

1шт.

19

80165202

O-RING

90 Duro, .351" ID x .072" Thk

1шт.
