Запчасти Case IH MXU115 (1.27.4[01A]) - TRANSMISSION 24X24 - HI-LO TRANSMISSION ENGAGEMENT CONTROL - D5270 (03) - TRANSMISSION

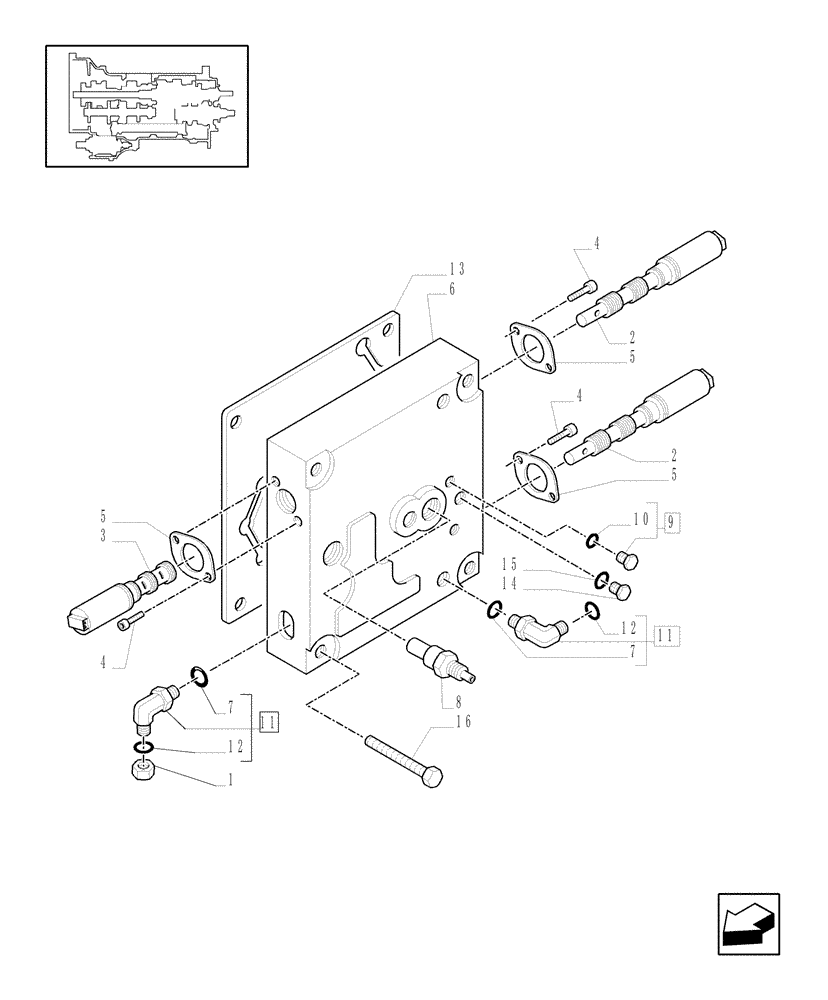

Схема запчастей Case IH MXU115 - (1.27.4[01A]) - TRANSMISSION 24X24 - HI-LO TRANSMISSION ENGAGEMENT CONTROL - D5270 (03) - TRANSMISSION
8
7
12
2
7
3
15
5
4
6
4
10
11
14
13
2
5
9
12
1
5
16
11
4

Артикул

Название

Примечание

Количество

1

47123020

PLUG,Hex

1шт.

1

47123020

PLUG,Hex

1шт.

2

5196873

SOLENOID VALVE

2шт.

3

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Black Connectors

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

6шт.

5

5194826

BRACKET

3шт.

6

5197921

BODY

1шт.

6

5197921

BODY

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

9

82857995

PLUG,7/16" - 20 ORB

Includes Ref.10

2шт.

10

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

90 Duro, .351" ID x .072" Thk

2шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

M18X1,5, 13/16"-16, Includes Ref.7, 12

3шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

3шт.

13

47136108

GASKET

1шт.

16

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

5шт.

14

83911570

HEX SOCKET PLUG,9/16"-18

1шт.

15

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
