Запчасти Case IH MXU115 (1.27.3) - TRANSMISSION 24X24 - GEARBOX VALVE (03) - TRANSMISSION

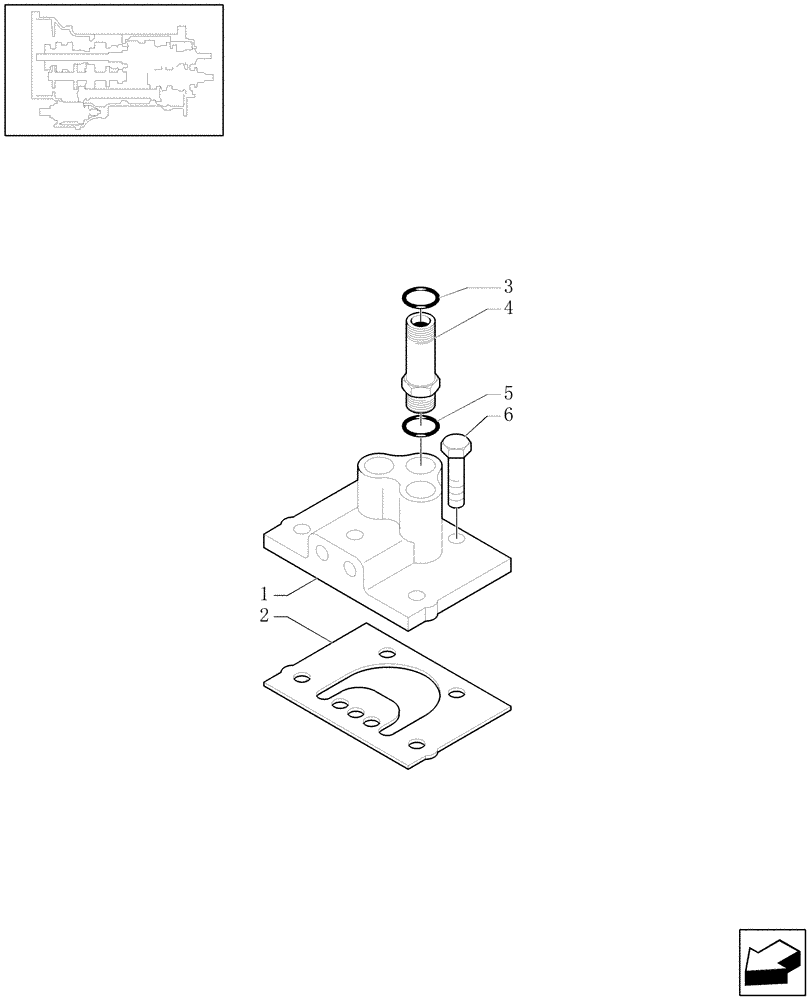

Схема запчастей Case IH MXU115 - (1.27.3) - TRANSMISSION 24X24 - GEARBOX VALVE (03) - TRANSMISSION
2
6
1
5
4
3

Артикул

Название

Примечание

Количество

1

47135835

VALVE BODY

1шт.

2

47135882

GASKET,0.7mm Thk

1шт.

3

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

.500x.070

3шт.

4

82001307

TUBE,68 mm Length

3шт.

5

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4-16

3шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

Выбрано товаров: 7
