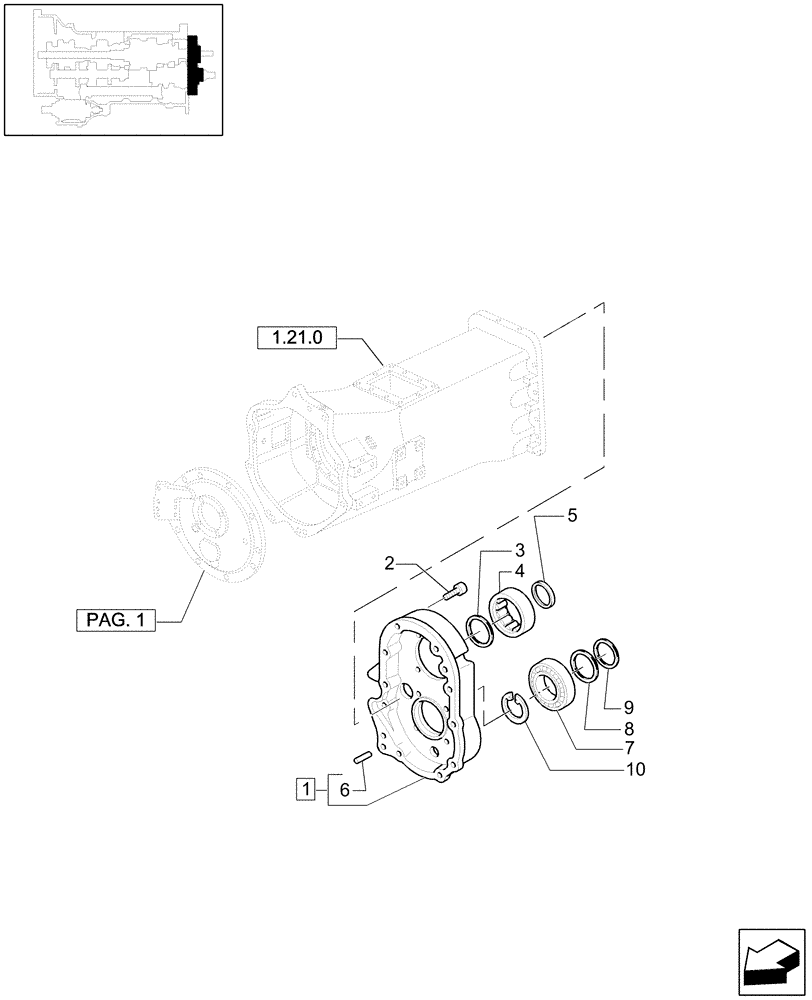

Запчасти Case IH MXU115 (1.21.0/01[02]) - (VAR.129) 16X16 (SPS) GEARBOX - REAR COVER (03) - TRANSMISSION

1

47126590

COVER

Includes Ref. 6

1шт.

2

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

10шт.

3

81863725

SPACER

1шт.

4

81863141

BEARING ASSY,52mm ID x 89.98mm OD x 22.88mm W

1шт.

5

47137455

OIL SEAL,32mm ID x 40mm OD x 4mm Thk

32x40x4

1шт.

6

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

7

81863568

BEARING ASSY

1шт.

8

81869768

WASHER

1шт.

9

81863365

RING

1шт.

10

11061976

SNAP RING,M80, Int

1шт.
