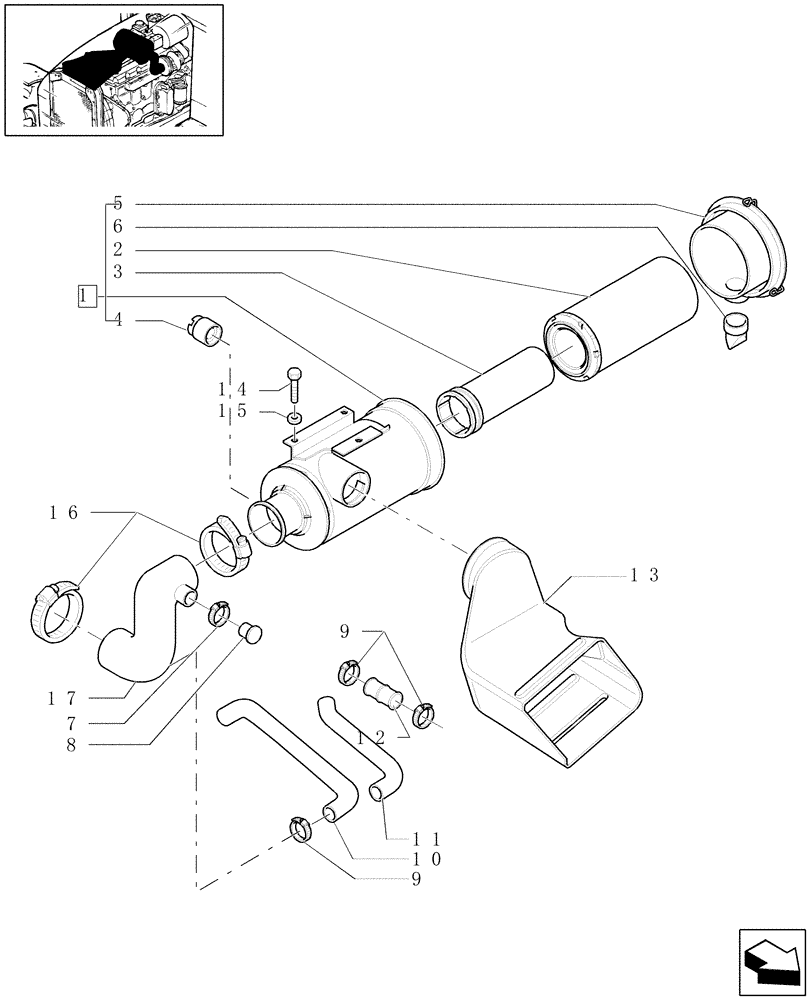

Запчасти Case IH MXU115 (1.19.1[02]) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT

1

82021482

AIR CLEANER

Includes Ref. 2, 3, 4, 5, 6

1шт.

2

82034620

AIR FILTER

Outer

1шт.

3

82034623

AIR FILTER

Inner

1шт.

4

82029621

INDICATOR

1шт.

5

87301833

COVER

1шт.

6

87301825

DUST VALVE

1шт.

7

13387470

HOSE CLAMP,31mm - 34mm

34MM

1шт.

7

13387470

HOSE CLAMP,31mm - 34mm

1шт.

ONLY for VAR. 178-242-243-385-448

1шт.

8

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

9

82039344

HOSE CLAMP,20mm - 32mm

20-32MM

1шт.

10

82033115

HOSE

MXU130

1шт.

11

82033114

HOSE

MXU115

1шт.

12

82029355

ADAPTER

1шт.

13

87326364

AIR DUCT

1шт.

14

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

16

87313773

CLAMP,100mm - 120mm, Worm Gear

100-120MM

1шт.

17

87312952

INTAKE AIR HOSE,102.00 mm ID x 191.00

1шт.
