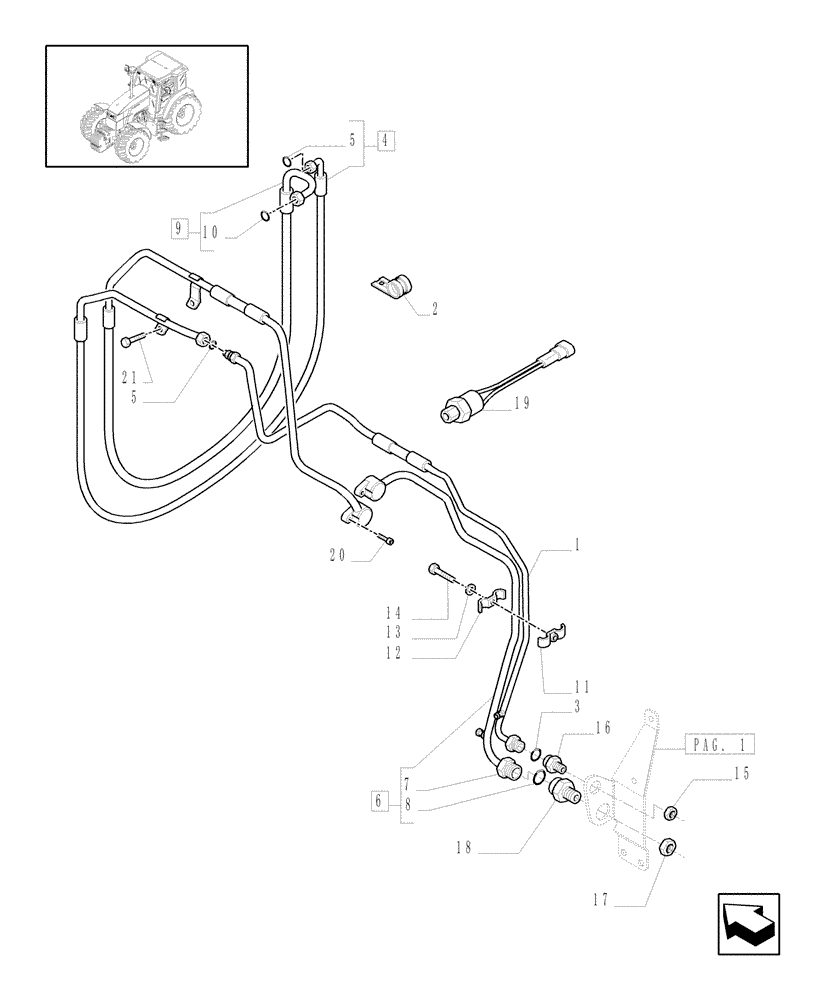

Запчасти Case IH MXU115 (1.94.3/01[03]) - (VAR.435-437/1-608-612) AIR CONDITIONING SYSTEM PIPES - C5332 (10) - OPERATORS PLATFORM/CAB

1

82027320

FLEXIBLE HOSE

Drier to Cab, INCL.3, MXU100, MXU110

1шт.

1

82035728

A/C HOSE

Drier to Cab, INCL.3, MXU115, MXU125, MXU135

1шт.

2

87331631

CLAMP

, Start Serial: D5124

1шт.

3

82000789

O-RING,1.85mm Thk x 17.6mm ID

1шт.

4

82027322

FLEXIBLE HOSE

, Serial Range: Condenser-Drier

1шт.

5

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk

2шт.

6

82036403

TUBE,15.88 mm OD, 335.5, 32.6 mm Length

INCL.7,8, MXU100, MXU110

1шт.

6

82036404

TUBE,15.88 mm OD, 328.5, 32.6 mm Length

INCL.7,8, MXU115, MXU125, MXU135

1шт.

7

82024388

FITTING

1шт.

8

82000790

O-RING,1.85mm Thk x 26.54mm ID

1.06" ID x .070" Thk, Green

1шт.

9

82033454

A/C HOSE

, Serial Range: Compressor-Condenser

1шт.

10

89827058

O-RING

.426" ID x .070" Thk

1шт.

11

82033450

CLAMP

1шт.

12

82033451

CLAMP

1шт.

13

14497801

WASHER

1шт.

14

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

1шт.

15

83905106

NUT

1"-20

1шт.

16

83905036

COUPLING

7/8-20 ; 1"-20

1шт.

17

83905107

NUT,1 7/16"-16

1шт.

18

83905037

COUPLING

1/4-18 ; 1-7/16"-16

1шт.

19

87305163

SWITCH, A/C HIGH PRE

HIGH PRESSURE

1шт.

20

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

21

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.
