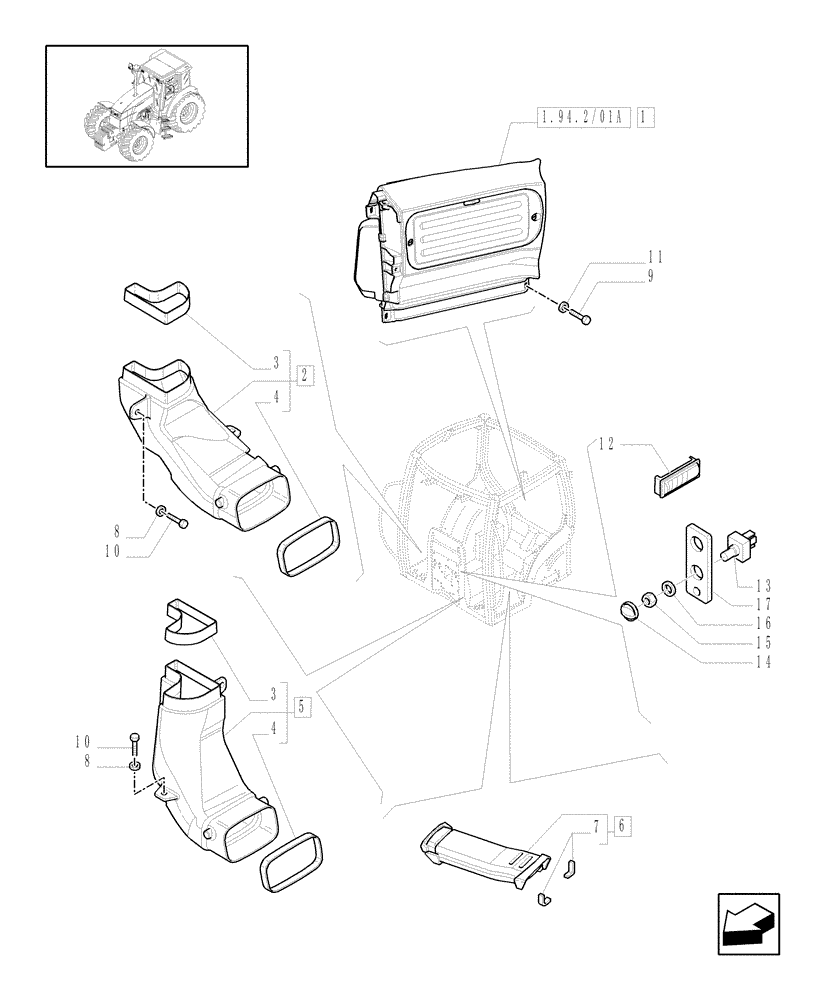

Запчасти Case IH MXU115 (1.94.2/01) - (VAR.545) ROOF WITH LOW PROFILE - FAN AND VENTILATION DUCTS (10) - OPERATORS PLATFORM/CAB

1

82033105

FAN

1шт.

2

82034316

DUCT

RH, Includes Ref.3, 4

1шт.

3

82023534

SEAL

1шт.

4

82033101

RUBBER SEAL

1шт.

5

82034317

DUCT

LH, Includes Ref.3, 4

1шт.

6

87301551

DUCT

RH, Includes Ref.7

1шт.

6

87301550

DUCT

LH, Includes Ref.7

1шт.

7

82033009

SEAL

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

10

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

11

17094714

LOCK WASHER,M6 x 13

4шт.

12

44995063

DIFFUSER

Wheat, Serial Range: -C5434

4шт.

12

87568777

VENT

Wheat, Start Serial: D5434

4шт.

13

82023545

FAN SWITCH

4 Speed

1шт.

14

87699601

KNOB

1шт.

15

80274562

NUT

1шт.

16

89715503

LOCK WASHER

1шт.

17

82036407

DECAL

1шт.
