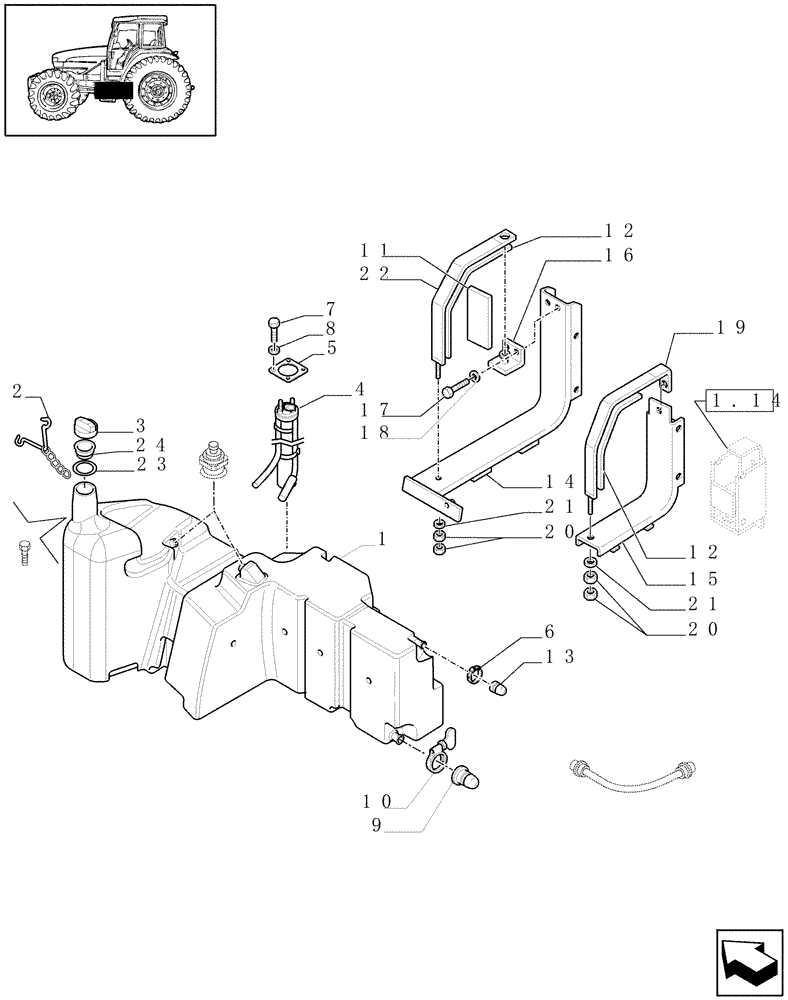

Запчасти Case IH MXU115 (1.14.0/01[01B]) - FUEL TANK AND RELATED PARTS - D6240 (02) - ENGINE EQUIPMENT

1

87490439

FUEL TANK

1шт.

2

87490453

LINK CHAIN

1шт.

3

82012210

FILLER CAP

1шт.

4

87699361

FUEL GAUGE

1шт.

5

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

6

82012719

CLAMP,15mm - 24mm, Worm Gear

1шт.

7

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

9

83998666

CAP

1шт.

10

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

11

82012920

RUBBER PAD,635mm L

1шт.

12

82013475

RUBBER PAD

2шт.

13

83952371

CAP,15mm ID X 25mm

1шт.

14

87480782

SUPPORT

Front

1шт.

15

82033333

SUPPORT

Rear

1шт.

16

82027923

SUPPORT

1шт.

17

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

12643421

2шт.

19

82020723

SECURING STRAP

696MM long, Plus 115 Thread

1шт.

20

83911009

NUT,M10, G8

4шт.

21

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

22

82013785

BRACKET

606MM

1шт.

23

87554849

O-RING,69mm ID x 4.5mm Width

1шт.

24

87554848

NECK FILLER

1шт.
